| MOQ: | 100 |
| Price: | USD$1.25~USD$1.5 |
| Standard Packaging: | Standard Carton Box |
| Delivery Period: | 2~5 working days |
| Payment Method: | T/T, Western Union, PayPal |
| Supply Capacity: | 500000 pieces per month |

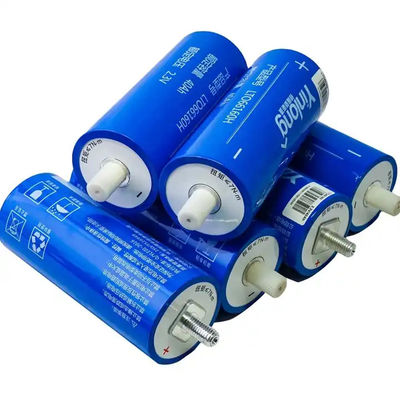

YINLONG LTO 66160 2.3V 40Ah Lithium Titanate Battery 66160K For Solar
Battery type: LTO 66160
Chemistry: Lithium Titanate Oxide
Nominal capacity: 40Ah
Nominal voltage: 2.3V
Weight: 1.25kg
Internal impedance: ≤0.7mΩ
Cycle life:≥25000 times, 80% DOD, capacity rentation≥80%
Dimension: 66*160mm
Cell height: 202mm (including terminals)
Max.cont.charging/discharging current: 400A(10C)
Max.pulse charging/discharging current: 800A(20C,10s)
Charging cut-off voltage: 2.9V
Discharging cut-off voltage: 1.5V
Applications: Energy Storage/UPS
Operation temperature: -50-65℃
life duration: 30 years
Specification:
| Battery Model | LTO 66160 |
| Battery Size | 66*66*160mm |
| Nominal Capacity | 40Ah |
| Nominal Voltage | 2.3V |
| Max Charge Voltage | 2.9V |
| Charging Method | CC-CV (constant voltage with limited current) |
| Max.Charging Current | 10C |
| Max. Discharging Current | 10C~20C |
|
Operating Temperature
|
Charge: 0 to 45 °C |
| Discharge:-20 to 60°C |
Safety Performance (Under PCB Condition):
| Item | Test name | Result |
| 1 | Over charge | No fire,no explosion |
| 2 | Over discharge | No fire,no explosion |
| 3 | Short Circuit | No fire,no explosion |
| 4 | Drop | No fire,no explosion,no leakage |
| 5 | Hot oven | No fire,no explosion |
| 6 | Crush | No fire,no explosion |
| 7 | Needle puncture | No fire,no explosion |
Business contacting:
*24-Hours Online. Your offer will be respond promptly.
*OEM, ODM, Wholesale are welcomed.
*Please feel free to contact us.
Hunan AUK New Energy Co., Ltd. (AUK Power)
More details info,pls kindly feel free to contact with us!
|
|
