Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker

Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker

MOQ: 2000PCS
Price: Negotiable
Standard Packaging: Carton box
Delivery Period: 5-8 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000pcs/day
Detail Information
Place of Origin
China
Brand Name
AUK
Certification
MSDS
Model Number
604060 or customize
Battery Capacity:
1700mAh
Cell Dimension:
6*40*60mm...etc
Material:
Lithium Cobalt Oxides
Max Charge Voltage:
4.2V
Storage Temperature:
-20°C - 65°C
Voltage:
3.7V
Warranty:
1 Year
Working Temperature:
-10℃ ~60℃
Minimum Order Quantity:
2000PCS
Price:
Negotiable
Packaging Details:
Carton box
Delivery Time:
5-8 Work Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000pcs/day
High Light:

1700mAh Rechargeable LiPo Battery

,

GPS Tracker Rechargeable LiPo Battery

,

3.7V Rechargeable LiPo Battery

Product Description
Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker

Specification

104050/2500mah
Basic Information
Dimension( thickness*width*length)
6*40*60mm or customize
Charge Voltage
4.2V
Nominal voltage
3.7V
Nominal capacity
1700mah
Fully charge voltage
4.2v
Ship out volatge
3.7-4.1v
Battery specification
Charge current
Standard Charging:0.5C/850mA
Max charge:1.0C/1700mA
Charging method
Charge with constant current 0.5c to 4.2V. then chagre with constant voltage 4.2v till. until charge current is less than 0.01C
Standard discharge current
0.5C/850mA
Max.discharge current
1.0C/1700mA
Discharge cut-off voltage
2.75V or 3.0V
Operating enviroment
Charging:0℃~45℃
Discharging:-10℃~60℃
Storage temperature
-10℃~45℃
Battery recyle time
500 times
Warranty
12 months

Product Specification



Type: Lithium battery
Capacity: 1700mAh
Rechargeable:YES
Charging Voltage: 3.7V~4.2V
Rated Voltage: 3.7V
Working Temperature: -10°~50°

Built-in intelligent protection PCB charging module, effectively prevent over charge, over discharge, over current, short circuit.
it is widely used in walkie-talkie, PSP, electric toys, MP5, GPS, remote control, iPod, tablet, Bluetooth speaker, headset, camera, MID, POS machine, solar lamp and other devices with the same battery size and capacity.

Attentions:

1. Due to manual measurement, please allow for small size deviation.

2. When the battery is not in use, it should be removed from the device.

3. Please make sure you have battery space for your device before bidding, we hope you purchase smaller size batteries.

4. The red and black lines should not be connected to avoid short circuit after battery is charged.



Instructions



1. Please allow tiny size deviations due to human measurement.Please take a look at the size of the battery when you submit your order

2. When the battery is not in use, it should be removed from the device.

3. The “+” on the battery is the positive pole, The “-” on the battery is the positive pole that's the negative pole

4. Again,look at the positive and negative ends of the battery and when you use it


Product Display

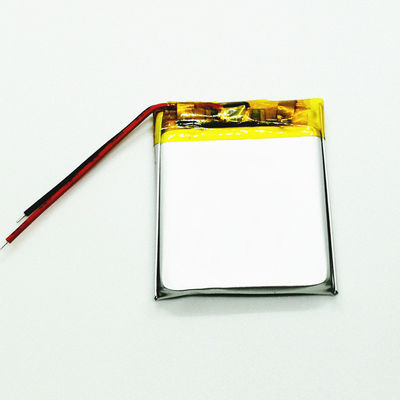

Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker 0



AUK Lthium ion Polymer Battery connector

AUK Lithium Polymer Batteries Customized PCB as customer request

Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker 1

Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker 2



AUK Lithium Polymer Lipo Battery application for your reference



Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker 3


Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker 4

Tips: If you are interested in our products, please tell us your specific needs such as voltage, capacity, shape, size, working current, etc. We can customize the battery according to your needs and offer you samples to test quality. Welcome to contact us for specification and quotation. Thank you!


Other KC/UL approved lithium polymer battery model as below:



Model Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1050mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh



Shipping methods
Destination Normally arrive at port time in working days
Ship by express Ship by sea Ship by air
North America 3-7 days 15-28 days 5-7 days
South America 3-7 days 15-30 days 5-7 days
European 3-7 days 20-30 days 5-7 days
Africa 5-7 days 45-50 days 5-7 days
The Middle East 3-5 days 15-30 days 3-5 days
Australia 3-7 days 10-20 days 5-7 days


HUNAN AUK NEW ENERGY CO., LTD is a comprehensive battery of R&D, design, production and processing as one of high quality battery manufacturer. The company has has a number of more than twenty years specializing in R&D lithium polymer battery protection areas. Adopting new technology and new facility to produce Li-ion polymer battery in high power, high voltage, wide temperature range of battery design, battery assembly design has its own unique technical ideas, and achieve the success of many customers at home and abroad to solve a variety of special purpose battery demand.



Our production capacity reaches 100,000pcs daily production of polymer battery cells, 200,000pcs daily production of aluminum shell battery cells and 100,000pcs of ends product battery pack.Our battery has character of big capacity, good safety and long cycle life. We have successively obtained CE, RoHS, MSDS, UL, CB/IEC62133, KC, ISO and UN38.3 Certifications.



We always insist treat others integrity to establish the credit enterprise .



With its attitude to pursuit excellence, is creating a new energy era of perfect quality, leading Chinese lithium polymer battery industry and turning itself into a world-class battery company.Only customers success is our success!

Rechargeable LiPo Battery 3.7V 1700mAh Li-ion Polymer For GPS Tracker 5

Tips: If you are interested in our products, please tell us your specific needs such as voltage, capacity, shape, size, working current, etc. We can customize the battery according to your needs and offer you samples to test quality. Welcome to contact us for specification and quotation. Thank you!
