PRODUCTS DETAILS

Home > Products >

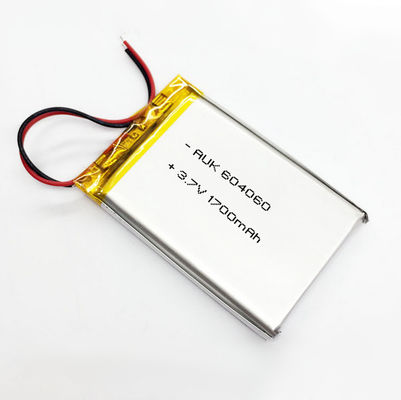

Backup Power Rechargeable Li Ion Polymer Battery 3.7V 1700mAh 604060

Products

LiFePO4 Energy Storage Battery

Backup Power Rechargeable Li Ion Polymer Battery 3.7V 1700mAh 604060

MOQ:	2000PCS
Price:	Negotiable
Standard Packaging:	Carton box
Delivery Period:	5-8 Work Days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	10000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

Model Number

604060

Battery Capacity:

1700mAh

Cell Dimension:

6*40*60mm

Material:

Lithium Cobalt Oxides

Max Charge Voltage:

Storage Temperature:

-20°C - 65°C

Voltage:

Warranty:

1 Year

Working Temperature:

-10℃ ~60℃

Minimum Order Quantity:

2000PCS

Price:

Negotiable

Packaging Details:

Carton box

Delivery Time:

5-8 Work Days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

10000pcs/day

Highlight:

Backup Rechargeable Li Ion Polymer Battery

Rechargeable Li Ion Polymer Battery 1700mAh

Rechargeable Li Polymer Battery 3.7 V

Product Description

Rechargeable Lithium Polymer Battery 604060 3.7V 1700mAh For Backup Power

Specification

104050/2500mah Basic Information	Dimension( thicknesswidthlength)	64060mm
	Charge Voltage	4.2V
	Nominal voltage	3.7V
	Nominal capacity	1700mah
	Fully charge voltage	4.2v
	Ship out volatge	3.7-4.1v

Battery specification	Charge current	Standard Charging:0.5C/850mA
	Charge current	Max charge:1.0C/1700mA
	Charging method	Charge with constant current 0.5c to 4.2V. then chagre with constant voltage 4.2v till. until charge current is less than 0.01C
	Standard discharge current	0.5C/850mA
	Max.discharge current	1.0C/1700mA
	Discharge cut-off voltage	2.75V or 3.0V
	Operating enviroment	Charging:0℃~45℃
	Operating enviroment	Discharging:-10℃~60℃
	Storage temperature	-10℃~45℃
	Battery recyle time	500 times
	Warranty	12 months

Product Specification

1. Model: AUK604060
2. Voltage:3.7V
3. Capacity: 1700mAh

Chemical Name	Molecular formula	Chemical code	In % by Weight
Aluminum Foil	Al	7429-90-5	8.0%
Copper Foil	Cu	7440-50-8	10.0%
Lithium cobalt oxide	LiCoO2	12190-79-3	48.0%
Carbon	C	1333-86-4	15.0%
Lithium Hexafluorophoshate	LiPFe	21324-40-3	10.0%
Polypropylene	PP	9003-02-0	2.0%
Nickel	Ni	7440-02-0	2.0%
Nylon	--	9008-75-7	5.0%

Type: Lithium battery

Capacity: 1700mAh

Rechargeable:YES

Charging Voltage: 3.7V~4.2V

Rated Voltage: 3.7V

Working Temperature: -10°~50°

Built-in smart protective PCB charging module, effectively prevents over charging, over discharging, over current, short circuit.

Widely used for MP3, MP4, Bluetooth speakers & headsets, GPS, remote controllers, headphone, smart watch, MID, PDA, pos machines, interphone, voice recorder, PSP, LED lamps, backup powers, electric toys and other devices with the same battery size and capacity.

Product Display

AUK Lthium ion Polymer Battery connector

AUK Lithium Polymer Batteries Customized PCB as customer request

AUK Lithium Polymer Lipo Battery application for your reference

Backup Power Rechargeable Li Ion Polymer Battery 3.7V 1700mAh 604060 3

AUK 2500mAh Li-Polymer Batteries Production Line and Progress

Backup Power Rechargeable Li Ion Polymer Battery 3.7V 1700mAh 604060 4

AUK Small 102050 Lipo Battery/Ultra thin Lithium Polymer Battery packing

Backup Power Rechargeable Li Ion Polymer Battery 3.7V 1700mAh 604060 5

OEM rechargeable battery manufacturer in China over 15 years
Specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery pack
Our batteries got UL, KC, BIS,IEC62133, CB, CE, ROHS certifications
We’re officially recognized by JVC, Skullcandy, Flex, Mitel etc. from 2013.
We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Africa, middle-east and South Asia.
AUKPower has well presence in international fairs each year, such as CEBIT,Intersolar, KES, HK Electronic Fair

Tips: If you are interested in our products, please tell us your specific needs such as voltage, capacity, shape, size, working current, etc. We can customize the battery according to your needs and offer you samples to test quality. Welcome to contact us for specification and quotation. Thank you!

Other KC/UL approved lithium polymer battery model as below:

Model	Dimension	With PCM Dimension	Capacity
302025	3.02025mm	3.22127.5mm	3.7V 100mAh
302530	3.02530mm	3.22632.5mm	3.7V 180mAh
401824	4.01824mm	4.21926.5mm	3.7V 180mAh
402525	4.02525mm	4.22627.5mm	3.7V 200mAh
483450	4.83450mm	5.03552.5mm	3.7V 850mAh
502030	5.02030mm	5.22132.5mm	3.7V 240mAh
502525	5.02525mm	5.22627.5mm	3.7V 180mAh
503030	5.03030mm	5.23132.5mm	3.7V 430mAh
523450	5.23450mm	5.43552.5mm	3.7V 1000mAh
553444	5.53444mm	5.73546.5mm	3.7V 850mAh
553640	5.53640mm	5.73742.5mm	3.7V 850mAh
553759	5.53759mm	5.73861.5mm	3.7V 1400mAh
602030	6.02030mm	6.22132.5mm	3.7V 300mAh
602240	6.02240mm	6.22342.5mm	3.7V 500mAh
602535	6.02535mm	6.22637.5mm	3.7V 500mAh
602663	6.02663mm	6.22765.5mm	3.7V 1000mAh
603030	6.03030mm	6.23132.5mm	3.7V 520mAh
603040	6.03040mm	6.23142.5mm	3.7V 750mAh
603048	6.03048mm	6.23150.5mm	3.7V 900mAh
603450	6.03450mm	6.23552.5mm	3.7v 1050mAh
702040	7.02140mm	7.22242.5mm	3.7V 500mAh
753048	7.53048mm	7.73150.5mm	3.7V 1200mAh
803035	8.03035mm	8.23137.5mm	3.7V 800mAh

Shipping methods
Destination	Normally arrive at port time in working days
Destination	Ship by express	Ship by sea	Ship by air
North America	3-7 days	15-28 days	5-7 days
South America	3-7 days	15-30 days	5-7 days
European	3-7 days	20-30 days	5-7 days
Africa	5-7 days	45-50 days	5-7 days
The Middle East	3-5 days	15-30 days	3-5 days
Australia	3-7 days	10-20 days	5-7 days
