MOQ: | 100PCS |
Price: | Negotiable |
Standard Packaging: | Carton box |
Delivery Period: | 5-8 Work Days |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 10000pcs/day |

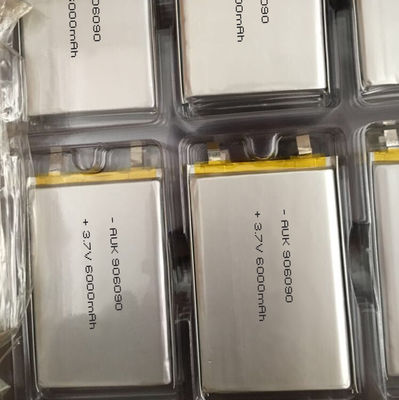

Name | Lithium Ion Polymer Battery |
Model Number | AUK906090 |
Voltage | 3.7V |
Capacity | 6000mAh |
Dimension | 9.0(T)*60(W)*90(L) mm |
Standard Charge Current | 0.2C/0.5C |
Maxium Charge Current | 1C |
Working Voltage | 3.0~4.2V |
Cut Off Voltage | 4.2V |
Cycle Life | 500-1000 Times |
Temperature | Charging: |
Storage Humidity | Charging: 0°C~40°C Discharging:-10°C~45°C Storage: ≤1 month -10°C ~ 40°C ≤6 months 0°C ~ 35 °C |
Appearance | Without scratch, distortion, contamination and leakage |
Standard Environmental Condition | Temperature: 23±5°C Humidity: 45-75%RH Atmospheric Pressure: 86-106 Kpa |
PCB | Yes |
Wire | Yes |
Package | Blue PVC |
Certificate | CE, RoHS |
Other lithium polymer battery model as below:
Model | Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Hunan AUK New Energy Co., Ltd. (AUK Power)
|
