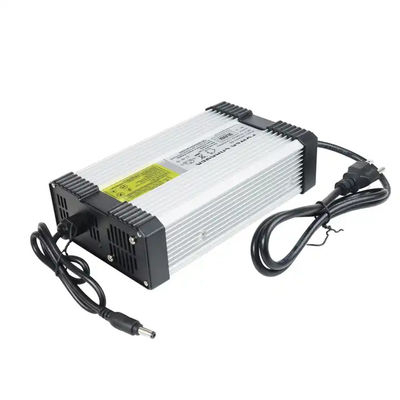

Lithium 84V 10A Charger 20S E Bike Li Ion Battery Charger Super

Lithium 84V 10A Charger 20S E Bike Li Ion Battery Charger Super

MOQ: 10PCS
Price: Negotiable
Standard Packaging: Carton box
Delivery Period: 5-8 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000pcs/day
Detail Information
Place of Origin
China
Brand Name
AUK
Certification
CE
Model Number
84v 10a
Case Material:
ABS
Charging Voltage:
84V
Charging Current:
10A
Model:
Lithium Battery Charger
Oem And Odm:
Welcomed
Package:
Carton
Safety Protection:
Overcharge, Overcurrent, Short Circuit
Type:
Replacement Fast Charger For Battery
Minimum Order Quantity:
10PCS
Price:
Negotiable
Packaging Details:
Carton box
Delivery Time:
5-8 Work Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000pcs/day
High Light:

Lithium 84V 10A Charger

,

84V 10A Charger

,

E Bike Li Ion Battery Charger

Product Description

Li-on Battery Charger 84V 10A Super Charger For 20S 72V Lithium E-Bike Battery

Specification

Input: AC 100-240V
Battery Cells: for 20s 72v Li-Ion Li-Po Battery pack
Output: 84v10A

Charger Type: CC and CV
Battery Charger Case Material: ABS + PC
Cooling Way: Built-in Cooling Fan
Certificate: CE SAA FCC ROHS
Operating Temperature: -20 to 60 Degree
Operating Humidity: 20 to 90%RH
Storage Temperature: -40 fo +80 Degree

Protection
Over current protection
Over voltage protection
Short Circuit Protection
Reverse Connection Protection

Usage Introdction
Dual color LED indicator:(Charging:Red; Fully charged or no load:Green)
Light weight and compact
High efficiency and low power consumption





Product Advantage

1) Dual color LED indicator:Red means Charing,Green means full charged.With 3 years warranty.

2) Constant current, constant pressure dual scheme design, perfectly conform to the lithium battery charging characteristics.
3) The two way average flow scheme is used, when one of them is damaged, only the charging current is reduced by half, and it can be used.

4) The charging time is adjustable, with LED indication, precision voltage and current detection, effectively preventing overcharge and completely eliminating charge of discontent and so on.

5) The input and output lines use high quality wires, corrosion resistance, and no cracking.
6) The shell is PC industrial raw material, fire retardant and flame retardant, temperature resistance 75 C.
7) With output short circuit protection, even if the output short circuit will not damage the power supply, when the output short circuit release, the power supply is still normal output.
8) It has the function of soft start, can withstand frequent switch start, will not cause damage to the power supply.
9) The enclosure with a fixed installation hole, with a terminal, the input and output connection is extremely simple, no need to use a soldering iron.
10) The DC current is precise IC control, non single triode constant current. Each cycle is monitored and the current limiting circuit is designed to prevent charge current from being too high, protect battery and extend battery life.
11) Built-in EMI filter device, anti lightning, surge voltage design.
12) Capacitance: capacitance is -40 C-105 C and C long life. The main products of international Dachang are ruby, black diamond, TOCON, YALECON and so on.Transistor: mainly used Silan, SILAN, ST, Fairchild.



Lithium 84V 10A Charger 20S E Bike Li Ion Battery Charger Super 0

Lithium 84V 10A Charger 20S E Bike Li Ion Battery Charger Super 1

Lithium 84V 10A Charger 20S E Bike Li Ion Battery Charger Super 2
