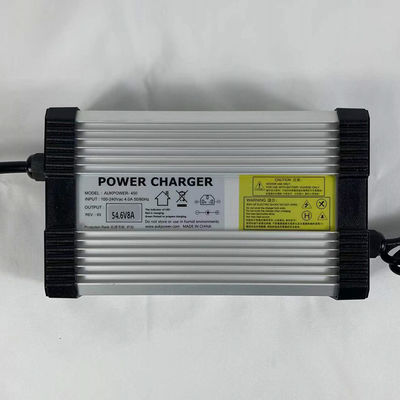

54.6V Lithium Battery Chargers 8A 7A 5A Lithium Charger ODM CE

Lithium Battery Charger 54.6V 8A 7A 6A 5A 10A For 13S 48v AC 100-240V CE ODM/OEM European Warehouse Stock

Specification
Input: AC 100-240V
Battery Cells: for 13SLi ion Battery Pack
Output: 54.6V 8A/5A
Charger Type: CC and CV
Battery Charger Case Material: Aluminium
Cooling Way: Built-in Cooling Fan
Certificate: CE SAA FCC ROHS
Operating Temperature: -20 to 60 Degree
Operating Humidity: 20 to 90%RH
Storage Temperature: -40 fo +80 Degree

Protection
Over current protection
Over voltage protection
Short Circuit Protection
Reverse Connection Protection
Usage Introdction
Dual color LED indicator:(Charging:Red; Fully charged or no load:Green)
Light weight and compact
High efficiency and low power consumption









Protection
Over current protection / Over voltage protection / Short Circuit Protection / Reverse Connection Protection
Product Advantage
1) Dual color LED indicator:Red means Charing,Green means full charged.With 1 years warranty.
2) Constant current, constant pressure dual scheme design, perfectly conform to the lithium battery charging characteristics.
3) The two way average flow scheme is used, when one of them is damaged, only the charging current is reduced by half, and it can
be  used.
4)The charging time is adjustable, with LED indication, precision voltage and current detection, effectively preventing overcharge
and completely eliminating charge of discontent and so on.
5) The input and output lines use high quality wires, corrosion resistance, and no cracking.
6) The shell is PC industrial raw material, fire retardant and flame retardant, temperature resistance 75 C.
7) With output short circuit protection, even if the output short circuit will not damage the power supply, when the output short
circuit release, the power supply is still normal output.
8) It has the function of soft start, can withstand frequent switch start, will not cause damage to the power supply.
9) The enclosure with a fixed installation hole, with a terminal, the input and output connection is extremely simple, no need to
use a soldering iron.
10) The DC current is precise IC control, non single triode constant current. Each cycle is monitored and the current limiting
circuit is designed to prevent charge current from being too high, protect battery and extend battery life.

We can supply120W li ion battery charger 8.4V 12.6V 16.8V 25.2V 29.4V 42V 50.4V 54.6V 58.8V 2A 3A 4A 5A 6A 8A Lithium ion battery charger
Operating Instructions:
1. Plug the AC-to-DC charger to electrical outlet and connect the other end to charger
2. LED will change to Green which indicate power is on and ready for charging mode
3. LED will turn RED, which indicate the battery is charging
4. LED will change from red to green, when the battery is fully charged
5. LED will change back to green when the charger connector is out of the battery packs
