1C 3.7V 2500mAh Rechargeable LiPo Battery Overcurrent Protection

1C 3.7V 2500mAh Rechargeable LiPo Battery Overcurrent Protection

MOQ: 100PCS
Price: Negotiable
Standard Packaging: Carton box
Delivery Period: 5-8 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000pcs/day
Detail Information
Place of Origin
China
Brand Name
AUK
Certification
MSDS
Model Number
785060
Capacity:
2500mAh
Charge Rate:
1C
Chemistry:
Lithium Polymer
Connector Type:
JST
Cycle Life:
500 Cycles
Operating Temperature:
-20°C To 60°C
Size:
7.8 X50 X 60mm
Voltage:
3.7V
Minimum Order Quantity:
100PCS
Price:
Negotiable
Packaging Details:
Carton box
Delivery Time:
5-8 Work Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000pcs/day
High Light:

2500mAh Rechargeable LiPo Battery

,

Rechargeable LiPo Battery Overcurrent Protection

,

3.7V 2500mAh Rechargeable Battery

Product Description

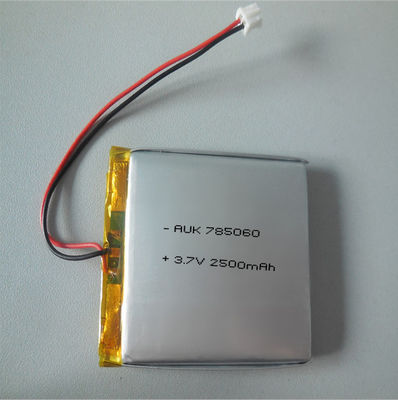

Rechargeable LiPo Battery 3.7V 2500mAh Polymer 785060 Cell For GPS Navigator

Description:



AUK batteries is Rechargeable LiPo Battery

(1) Rechargebale LiPo battery AUK 785060  size is 7.8mm*50mm*60mm,

(2) Rechargeable LiPo battery AUK 785060 rated voltage is 3.7V, rated capacity is 2500mAh;

(3)  PCB/PCM protection circuit are available if necessary;

(4) Rechargeable Lipo battery 2500mAh size can be customize, please contact us;

(5) Rating: DC3.7V 2500mAh

(6) Charging current: standard charging, fast charging: 1.0C: 0.5C

(7) Standard charging method: 0.5C CC (constant current) charge to 4.25V, then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C
Attention:

1. Use a specified charger.



2. Do not disassemble the battery.



3. Do not short circuit the battery terminals.



4. Do not throw the battery into fire or heat.



5. Keep the battery in a cool dry surroundings if it stands by.



6. Maximum 1C charging and discharging current, can not be use for any drone or aircraft.



Built-in intelligent protection PCB charging module, effectively prevent over charge, over discharge, over current, short circuit.
it is widely used in walkie-talkie, PSP, electric toys, MP5, GPS, remote control, iPod, tablet, Bluetooth speaker, headset, camera, MID, POS machine, solar lamp and other devices with the same battery size and capacity.
Product features:
1. Over charge Protection
2. Over discharge protection
3. Overcurrent protection
4. Short protection

Details:
Type
AUK 785060
Standard Capacity
2500MAH
Nominal Voltage
3.7V
Connector (normal)
1.0mm/1.25mm/2.0mm pitch
Dimension Range with PCB
Length:62≤+2.5/-0.5mm
Width:50≤±0.5mm
Thickness:7.8≤±0.3mm
PCM /PCB
Customized (Discharge cut-off voltage :3.0V or 2.4V)
Delivery time
5-7 days (in stock) 15- 35days (out of stock)
Free samples
Yes





1C 3.7V 2500mAh Rechargeable LiPo Battery Overcurrent Protection 0



Some available rechargeable lipo battery cell:



1C 3.7V 2500mAh Rechargeable LiPo Battery Overcurrent Protection 1



Company Information

Hunan AUK New Energy Co., Ltd. (AUK Power)


1C 3.7V 2500mAh Rechargeable LiPo Battery Overcurrent Protection 2

1C 3.7V 2500mAh Rechargeable LiPo Battery Overcurrent Protection 3
