MOQ: | 100PCS |
Price: | Negotiable |
Standard Packaging: | Carton box |
Delivery Period: | 5-8 Work Days |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 10000pcs/day |
Description:
(1) AUK Lipo batteries are rechargebale, such as 3.7V 50mAh, 100mAh, 200mAh, 1000mAh...etc rechargeable LiPo battery; (2) Rechargeable battery are widely used in consumer electronics devices, it can save costs; (3) Available to Built-in protection circuit PCM for prevent over charging or over discharging (4) Rechargeable 100mAh Lipo battery size can be such as 4mm (H)*12mm (W)*30mm (L), 3.5mm (H)*16mm (W)*29mm (L), size can be customized if needed (5) Rating: DC3.7V 100mAh (6) Charging current: standard charging, fast charging: 1.0C: 0.5C (7) Standard charging method: 0.5C CC (constant current) charge to 4.25V, then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C
Attention:
1. Use a specified charger.
2. Do not disassemble the battery.
3. Do not short circuit the battery terminals.
4. Do not throw the battery into fire or heat.
5. Keep the battery in a cool dry surroundings if it stands by.
6. Maximum 1C charging and discharging current, can not be use for any drone or aircraft.
Details:

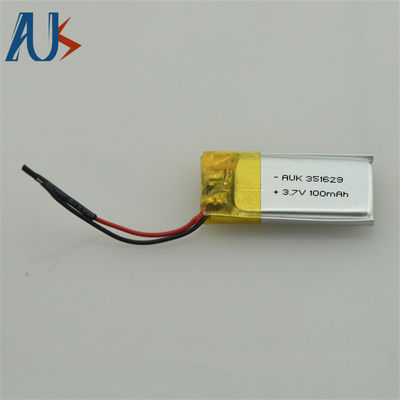

Type
|
AUK 401230 351629
|
Standard Capacity
|
100MAH
|
Nominal Voltage
|
3.7V
|
Connector (normal)
|
1.0mm/1.25mm/2.0mm pitch
|
Dimension Range with PCB
|
Length:30≤+2.5/-0.5mm
|
Width:12≤±0.5mm
|
|
Thickness:4.0≤±0.3mm
|
|
PCM /PCB
|
Customized (Discharge cut-off voltage :3.0V or 2.4V)
|
Delivery time
|
5-7 days (in stock) 15- 35days (out of stock)
|
Free samples
|
Yes
|
AUK Other Hot Selling Lithium Polymer Battery Model for your Choose
NO.
|
Model
|
Capacity(mAh)
|
|
NO.
|
Model
|
Capacity(mAh)
|
1
|
252040
|
155
|
|
14
|
601235
|
200
|
2
|
301738
|
160
|
15
|
302535
|
210
|
|
3
|
401730
|
160
|
16
|
551240
|
220
|
|
4
|
302035
|
160
|
17
|
701430
|
230
|
|
5
|
601230
|
170
|
18
|
382035
|
230
|
|
6
|
501530
|
170
|
19
|
342431
|
240
|
|
7
|
500850
|
180
|
20
|
252540
|
250
|
|
8
|
301850
|
180
|
21
|
651730
|
270
|
|
9
|
302530
|
180
|
22
|
382035
|
280
|
|
10
|
402030
|
180
|
23
|
402040
|
280
|
|
11
|
501240
|
190
|
24
|
501743
|
285
|
|
12
|
351455
|
200
|
25
|
601341
|
290
|
|
13
|
451635
|
200
|
26
|
253048
|
340
|
|
OEM/ODM All models lipo battery can be customized for you
|
Hunan AUK New Energy Co., Ltd. (AUK Power)
Welcome to AUK Power! We are a leading product manufacturer and solution provider in the field of Lithium Polymer Battery system, headquartered in Changsha, Hunan Province, China, the factory located in Shenzhen, Guangdong Province give full support to the headquarter’s operation.
Since the foundation in 2008. through continuous and intensive development for many years, now AUK Power has over 300 staffs and 25 experienced innovative Engineers .
Our business scope has been extended to R&D, manufacturing, marketing & sales, engineering and service with following industries:Lithium Polymer Battery, Ultra Thin Lipo Battery, Rechargeable Lipo Battery, Mini Lipo Battery, Small Lipo Battery, Custom Lipo Battery as customer request etc.
AUK Power’s no1 priority is customer service. We are always available to assist you. We are proud to have thousands of satisfied customers with satisfied experience,and that is what makes them come back to us. We are always on the lookout to see what we can enhance,so that our customers achieve their ultimate satisfaction.
Our focus is to provide you with a solution for ALL your Lithium Polymer Battery needs.
|
