| MOQ: | 100pcs |
| Price: | Negotiable |
| Standard Packaging: | Standard Carton Box |
| Delivery Period: | 5-7working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 200000 pieces per month |

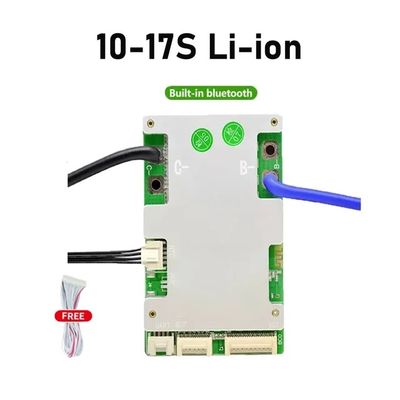

JBD BMS Smart BMS- SP17S005(Automatically identify strings 10S-17S)
Product Introduction
Size:102*65*12mm
Applicable Battery Type: 3.2V Lifepo4/3.7V Li-ion Battery.
Support strings number:Automatically identify 10S/11S/12S/13S/14S/15S/16S/17S.
Continuous current 20A,peak current 60A continue 1s.
Continuous current 40A,peak current 120A continue 1s.
Continuous current 50A,peak current 150A continue 1s.
Continuous current 60A,peak current 180A continue 1s.
Continuous current 80A,peak current 240A continue 1s.
Applicable for:Power Battery,Lithium Battery,E-Bike,E-Motorcycle,E-scooter,etc.
Package Included:BMS with built-in BT*Balance Wires.
Function Introduction
(1)BT-APP in Phone (xiaoxiangElectric App:
Support Both IOS and Android version,can monitor and change the parameters(need to be within the specified range).
(2)UART-JBD PC Tool Box:Monitor and Set parameters.
PC Tool Software
(3)UART LCD Display:Can monitor parameters on LCD display.
Attention
(1)The smart bms with integrated bluetooth on the board,needn't buy bluetooth separately.
(2)The smart bms has BT and UART function.
(3)Uart smart accessories need buy separately
(4)All UART communication can be converted to Canbus communication if needed,only need to buy
an UART To CAN convertor moduleseparately.
1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is up to alarm voltage(Li-ion up to 4.18V, Life Po4 up to (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po4 3.6V) are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functioning well .
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn’t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Lead acid battery, for lead acid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.
Attention When Connecting:
When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage difference less than 0.05V, IR difference less than 15 mΩ, capacity differenace less than 30mAh) to make sure the better consistency of the battery.
Cell must be connected in parallel first, after then connected in series.
Connection:
1. Connect charging /discharging wire, battery pack negative wire.
2. After confirm the wires are connected OK, plug the connector cable in the BMS
Do not plug connector cable in the BMS before connect wire.
Attention, ESD protection during work.
About Logistics:
DAP channel generally takes 5-9 working days, and DHL / UPS / FedEx, etc. are selected; DDP (including tax payment) channels generally take 12-15 working days. The freight forwarding line arrives in your country and then transported by local express.
2. About products:
all our products cooperate with manufacturers, and these manufacturers are very reliable. Products are popular, and most products have CE certificates.
3. About delivery time:
Generally speaking, we have stock and can deliver goods quickly (within 1-3 days). DIY products, such as battery box, bus bar, insulating board, etc., are generally customized within 3-7 days;
4. What services can we provide?
Accepted delivery terms: FOB/DAP;
Accepted payment currencies: U.S. dollars, RMB;
Acceptedpayment types: T/T, L/C;
5. After sales service:
if you encounter problems in the process of using our products, or consult about installation and other problems, please contact us.
Email: jimmy@aukpower.com
Wechat / Tel. / WhatsApp: + 86-15220259126
|
|
