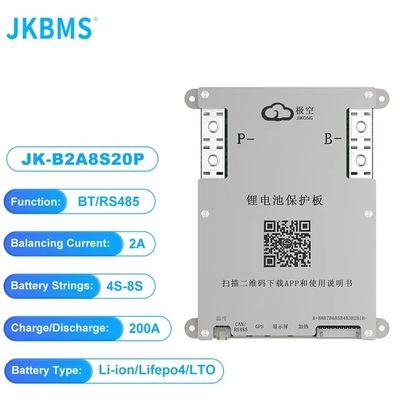

JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION

JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION

MOQ: 100pcs
Price: Negotiable
Standard Packaging: Standard Carton Box
Delivery Period: 5-7working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 200000 pieces per month
Detail Information
Place of Origin
China
Brand Name
JK BMS
Certification
CE
Model Number
4S-8S
Battery Series:
4S-8S
Base Material:
FR-4
Suitable Battery:
Lifepo4/Li Ion/Lipo/Lto
MOQ:
1pcs
Sample:
Avaliable
Balance Way:
Active
Over Current Protection:
Adjustable
BT Function:
Support Andriod And IOS
Minimum Order Quantity:
100pcs
Price:
Negotiable
Packaging Details:
Standard Carton Box
Delivery Time:
5-7working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
200000 pieces per month
High Light:

2A Smart BATTERY

,

BMS 2A 24V SAMRT BATTERY

,

JK SAMRT BMS 4S BATTERY

Product Description
JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION
Key words:JK BMS 200A
Package
BMS{Bluetooth bulit-in}
Temperature sensor(40cm)
Balance Wires(75cm)
Active Switch(15cm)
Heating cable(Only for BMS With Heat Function)
H:BMS With Heat Function
C:BMS With CANBUS chip Bulit-in

NOTE: For instructions on heating cables,
the green 5PIN cable of the heating cable needs to be linked to the heating pad,
and the rest of the black and red cables are linked to the smart charger
(after the smart charger links the BMS,
it detects the temperature of the battery through the BMS,
which automatically monitors the charging status of the battery)
Heat Function interface
Description of heating function:
Battery temperature is below low temperature charge protection, turn off charging, turn on heating.

Cryogenic charge protection is a parameter that can be set within APP

The heating power depends on the battery voltage and the resistance value of the heating film.

Battery voltage U.

Heating resistance R.

Power equals U*U/R

Heating current I=U/R;

The maximum I (current) of the board design is 3A.

MAX heating power 200W(100W OF B2A8S20P).


Bluetooth link for Phone-JK BMS

Download link-IOS : Search (JK BMS) in the APP STORE

Download link-Andriod :Search (JK BMS) in the Google STORE

JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 0JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 1


JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 2JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 3JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 4
JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 5
①:Temperature sensor
②:RS485 interface(At present, all JK BMS are configured with RS485 function by default)
③:LCD interface(At present, all JK BMS are configured with LCD interface by default)
④:Heat Function interface(At present, the heating function customized by customers can be accepted)
⑤:CANBUS interface ( Needs customized)

JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 6


JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 7

JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 8

JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 9JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 10
JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 11JK SAMRT BMS 4S 5S 6S 7S 8S 200A 12V 24V BATTERY WITH 2A ACTIVE BALANCE HEAT FUNCTION 12



NOTICE:

Protection (Current Sensor Anomaly)

This problem exists when the inverter is used, because the current direction is uncertain,
The alarm will be displayed. It does not affect the normal use of BMS.
This kind of alarm will appear when the sun is not big or small, because at this time,
the battery fluctuates frequently between charging and discharging,
and there are uncertain factors, so this problem occurs.

A pure sine wave inverter does not draw a constant current. The current from the battery follows a sine wave shape.
It ramps from zero current up to peak current in 1/4 of a cycle.
The peak current is actually about 40% more than the average current.
Then the current will ramp back down to zero at the 1/2 cycle time. At this point, the inverter reverses polarity,
and ramps the current back up again, hitting the peak at the 3/4 cycle time. The battery current is positive again,
and the inversion happens in the inverter circuit. The the current ramps down back to zero again at the end of the cycle.
The process them repeats for every cycle.

If you measure with an averaging meter, you will just see a fairly steady current that should be close to the true RMS current.
I use a True RMS Fluke meter, and it is able to give a vey accurate reading on this odd waveform.
The current reading in the BMS just measures the voltage across a shunt resistor. This reading is only taken periodically,
and it is not synced the the changing current from the inverter. It might take a reading at zero current, or at the peak current,
but most likely, it will fall somewhere in between.
Due to the shape of the wave, the reading tends to bounce a bit above and below the true RMS current.
It is not perfect, but over the long term, it is "good enough" for the BMS to calculate the amp hours charged in or discharged out of the battery.
This works because if you average the readings over a full hour, the high and low readings will average out.


Product introduction:

can use for li-ion Lipo Lifepo4 LTO battery
have English APP for Android and IOS cellphone
each version size is different

Features:

1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of cells, raise the battery usage efficiency for 95%
2.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit Over-temperature protection etc...
3.Single battery series voltage range is 1~5V, the precision is 5mV
4.With the function of coulomb meter, the remaining power is very clear
5.BT communication function, the battery status can be displayed on APP


FAQ

1.What is the common port and separate port? what is the difference?

We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.


2.What is the balance function?

The working principle and function are as followings, when your one cell voltage is up to alarm voltage(Li-ion up to 4.18V, Life Po4 up to (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po4 3.6V) are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functioning well .


3.The relationship between Battery capacity and BMS current?

There is no direct relationship between Battery capacity and BMS current, big capacity doesn’t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.


4. What type of charger should I choose?

Lithium battery must choose specific charger, do not use Charger for Lead acid battery, for lead acid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.


5. What current BMS should I choose ?

Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than current limitation in Controller.


6. Whether my BMS damaged?

if you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.



Attention When Connecting:

When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.

In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage difference less than 0.05V, IR difference less than 15 mΩ, capacity differenace less than 30mAh) to make sure the better consistency of the battery.

Cell must be connected in parallel first, after then connected in series.


Connection:

1. Connect charging /discharging wire, battery pack negative wire.

2. After confirm the wires are connected OK, plug the connector cable in the BMS

Do not plug connector cable in the BMS before connect wire.

Attention, ESD protection during work.



About the Shipping and delivery(In stock)

Ship to US/USA
ETD:3-7 days
The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery.

By sea+FEDEX Delivery(DDP,Tax free)
ETA:40-55 days after delivery

Ship to EU
ETD:2-5 days
The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery.
By railway+UPS(DDP,Tax free)
ETA:40-55 days after delivery

Ship to AU
ETD:7-10 days
The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery.

By sea+Delivery(DAP)
ETA:40-55 days after delivery
