| MOQ: | 100PCS |
| Price: | Negotiable |
| Standard Packaging: | Carton box |
| Delivery Period: | 5-8 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10000pcs/day |
Description:

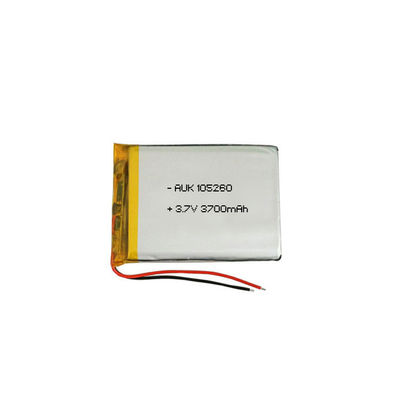

AUKPOWER Custom LiPo Battery AUK 105260 3.7V 3700mAh:
(1): We custom lipo battery AUK 105260 as per buyers requests, size is 10mm*52mm*60mm, rated voltage is 3.7v, charging voltage is 4.2V, rated capacity is 3700mAh, feel free to contact us if you have other size requests;
(2): After add PCB/PCM protection, size will be arounds 10mm*52mm*62mm ;
(3): We can custom connectors by customers needed;
(4): Custom lipo battery application is based on buyers requests,square size for special requests, other size are available custom;
Details:
Type
|
AUK 105260
|
Standard Capacity
|
3700MAH
|
Nominal Voltage
|
3.7V
|
Connector (normal)
|
1.0mm/1.25mm/2.0mm pitch
|
Dimension Range with PCB
|
Length:62≤+2.5/-0.5mm
|
Width:52≤±0.5mm
|
|
Thickness:10≤±0.3mm
|
|
PCM /PCB
|
Customized (Discharge cut-off voltage :3.0V or 2.4V)
|
Delivery time
|
5-7 days (in stock) 15- 35days (out of stock)
|
Free samples
|
Yes
|
Information:
Nominal capacity: 3700 mah
Product size: 10.0 MM thick 60 MM long and 52 MM wide
Rated voltage: 3.7 V
Charging voltage: 4.2 V
Charging temperature: 0 C ~ 45 C
The discharge temperature: - 20 C ~ + 60 C
Storage temperature: - 20 C ~ + 35 C
Charging current, charging standard: 0.5 C, quick charge: 1.0 C
Standard charging methods: 0.5 C CC (constant current) charged to 4.25 V, the CV (4.2 V) constant voltage charging again until the charging current 0.05 C or less
The maximum charging current: 1 c
Maximum discharge current: 1 c
Should use:
Mobile power supply, machine learning tablet, car navigation, MP3, MP4,'t a MP5, card speaker, wireless mouse, display the PSP phone millet built-in battery power surrounding the , tablet computers, mobile DVD, notebook batteries, wireless monitoring equipment, medical equipment, all kinds of instruments and meters, LED lamps, traffic signs, portable appliances, instruments and meters, all kinds of DIY metal detectors, and other digital types of batteries.
Main features:
1. All kinds of size: type and capacity to choose from, high applicability
2. Quality assurance: using A product batteries, high capacity, low internal resistance
3. The performance is stable, circulation service life is long: continuous charging and discharging after 500 time, battery capacity of less than 80% of the rated capacity.
4. No memory effect, can be used to charge and discharge at any time
5. High safety: built-in protection circuit board, is in short circuit, over charge, discharge, shock, vibration, acupuncture, high temperature, such as fire, explosion, etc.
Custom Li-Po Battery Application:
Hunan AUK New Energy Co., Ltd. (AUK Power)
.
