| MOQ: | 100PCS |
| Price: | Negotiable |
| Standard Packaging: | Carton box |
| Delivery Period: | 5-8 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10000pcs/day |
Description:

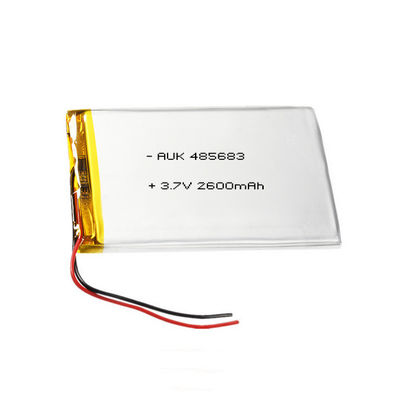

Model: AUK 485683
Type: Lithium battery
Capacity: 2600mAh
Rechargeable:YES
Charging Voltage: 3.7-4.2V
Rated Voltage: 3.7V
Size:About 83x56x4.8mm
Maximum continuous charging current:1C
Maximum continuous discharge current:1C
Attentions:
1. Due to manual measurement, please allow for small size deviation.
2. When the battery is not in use, it should be removed from the device.
3. Please make sure you have battery space for your device before bidding, we hope you purchase smaller size batteries.
4. The red and black lines should not be connected to avoid short circuit after battery is charged.
Details:
Type
|
AUK 485683
|
Standard Capacity
|
2600MAH
|
Nominal Voltage
|
3.7V
|
Connector (normal)
|
1.0mm/1.25mm/2.0mm pitch
|
Dimension Range with PCB
|
Length:85≤+2.5/-0.5mm
|
Width:56≤±0.5mm
|
|
Thickness:4.8≤±0.3mm
|
|
PCM /PCB
|
Customized (Discharge cut-off voltage :3.0V or 2.4V)
|
Delivery time
|
5-7 days (in stock) 15- 35days (out of stock)
|
Free samples
|
Yes
|
Custom lipo battery application:
Hunan AUK New Energy Co., Ltd. (AUK Power)
