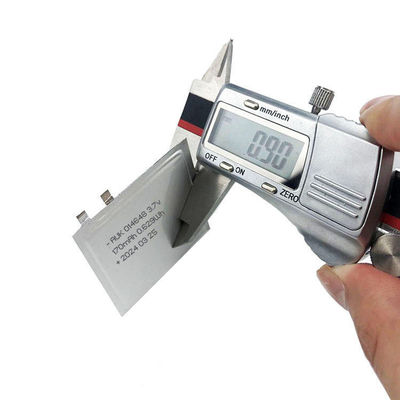

Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery

Products

LiFePO4 Energy Storage Battery

Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery

MOQ:	1000PCS
Price:	Negotiable
Standard Packaging:	Carton box
Delivery Period:	5-8 Work Days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	10000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

Model Number

014648

Capacity:

170mAh

Certifications:

Chemistry:

Lithium Polymer

Operating Temperature:

-20°C To 60°C

Type:

Rechargeable

Minimum Order Quantity:

1000PCS

Price:

Negotiable

Packaging Details:

Carton box

Delivery Time:

5-8 Work Days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

10000pcs/day

Product Description

Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery

Battery Specification

1. Mechanical Characteristics
Cell	014648	PCM	No
NTC	No	Weight	appr. 3.8 g
Configuration	1S1P	Demension	0.94648mm(MAX)
2. Electrical Specification
Capacity	170mAh	Nominal Voltage	3.7V
Energy	0.629Wh	Internal Impedance	less than 300mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	170mAh	Max. Discharge Current	170mAh
Standard Charge Current	34mA	Standard Discharge Current	34mA
Charge Temp. Range	0℃ to 45℃	Discharge Temp. Range	-20℃ to 60℃
Storage Temp. Range	1 year at -20℃ to +30℃	Cycle life	100 cycles ≥92%
	3 months at -20℃ to +45℃		300 cycles ≥88%
	1 month at -20℃ to +60℃		500 cycles ≥80%
3. Cell protection
Overcharge Detection	-	Over discharge Detection	-
Overcurrent Detection	-	Short protection	-

1. We can design all kinds of discharge rate battery according to our client's requirement, we can design 65C continue discharge rate battery.
2. High discharge rate platform, median voltage is over 3.3V when discharge under Nominal discharge rate.
3. Low temperature: The highest temperature is below 75 when discharge at discharge rate.
4. Long cycle life: Up to 500 cycles under quick charging and discharging at nominal discharge rate.
5. Good built-up capability and good consistency.
6. Flesible dimension can be widely used in the Tablet PC, commuication equipments

Other Ultra thin lipo battery as below:

No	Model	capacity(mAh)	Voltage(V)	Thickness(mm)	Width(mm)	Length(mm)
1	AUK041850	12	3.7	0.47	18.5	50.5
2	AUK042126	8	3.7	0.50	21.8	26.1
3	AUK042255	20	3.7	0.47	22.5	55.5
4	AUK042323	8	3.7	0.47	0.5	23.5
5	AUK043030	15	3.7	0.47	30.5	30.5
6	AUK043228	15	3.7	0.47	32.5	28.5
7	AUK043251	25	3.7	0.47	32.5	51.5
8	AUK043526	12	3.7	0.47	35.0	26.5
9	AUK072247	30	3.7	0.70	22.8	47.8
10	AUK072836	30	3.7	0.70	28.0	36.0
11	AUK082025	14	3.7	0.80	20.5	25.5
12	AUK083960	100	3.7	1.00	39.5	60.5
13	AUK085045	100	3.7	0.80	50.0	45.5
14	AUK10180270	3,000	3.7	1.00	180.0	270.0
15	AUK20180270	6,000	3.7	1.80	180.0	270.0
16	AUK2029110	400	3.7	2.00	29.5	110.0
