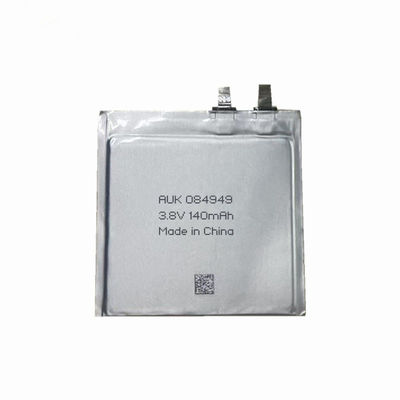

3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949

Products

LiFePO4 Energy Storage Battery

3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949

MOQ:	1000PCS
Price:	Negotiable
Standard Packaging:	Carton box
Delivery Period:	5-8 Work Days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	10000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

Model Number

084949

Capacity:

140mAh

Certifications:

Chemistry:

Lithium Polymer

Operating Temperature:

-20°C To 60°C

Type:

Rechargeable

Minimum Order Quantity:

1000PCS

Price:

Negotiable

Packaging Details:

Carton box

Delivery Time:

5-8 Work Days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

10000pcs/day

Product Description

3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949

1. Mechanical Characteristics
Cell	084949	PCM	No
NTC	No	Weight	appr. 2.8 g
Configuration	1S1P	Demension	0.84949mm(MAX)
2. Electrical Specification
Capacity	140mAh	Nominal Voltage	3.7V
Energy	0.518Wh	Internal Impedance	less than 300mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	140mAh	Max. Discharge Current	140mAh
Standard Charge Current	28mA	Standard Discharge Current	28mA
Charge Temp. Range	0℃ to 45℃	Discharge Temp. Range	-20℃ to 60℃
Storage Temp. Range	1 year at -20℃ to +30℃	Cycle life	100 cycles ≥92%
	3 months at -20℃ to +45℃		300 cycles ≥88%
	1 month at -20℃ to +60℃		500 cycles ≥80%
3. Cell protection
Overcharge Detection	-	Over discharge Detection	-
Overcurrent Detection	-	Short protection

Battery size 0.8×49×49mm

Other Ultra thin lipo battery as below:

No	Model	capacity(mAh)	Voltage(V)	Thickness(mm)	Width(mm)	Length(mm)
1	AUK041850	12	3.7	0.47	18.5	50.5
2	AUK042126	8	3.7	0.50	21.8	26.1
3	AUK042255	20	3.7	0.47	22.5	55.5
4	AUK042323	8	3.7	0.47	0.5	23.5
5	AUK043030	15	3.7	0.47	30.5	30.5
6	AUK043228	15	3.7	0.47	32.5	28.5
7	AUK043251	25	3.7	0.47	32.5	51.5
8	AUK043526	12	3.7	0.47	35.0	26.5
9	AUK072247	30	3.7	0.70	22.8	47.8
10	AUK072836	30	3.7	0.70	28.0	36.0
11	AUK082025	14	3.7	0.80	20.5	25.5
12	AUK083960	100	3.7	1.00	39.5	60.5
13	AUK085045	100	3.7	0.80	50.0	45.5
14	AUK10180270	3,000	3.7	1.00	180.0	270.0
15	AUK20180270	6,000	3.7	1.80	180.0	270.0
16	AUK2029110	400	3.7	2.00	29.5	110.0
