| MOQ: | 100PCS |
| Price: | Negotiable |
| Standard Packaging: | Carton box |
| Delivery Period: | 5-8 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10000pcs/day |
|

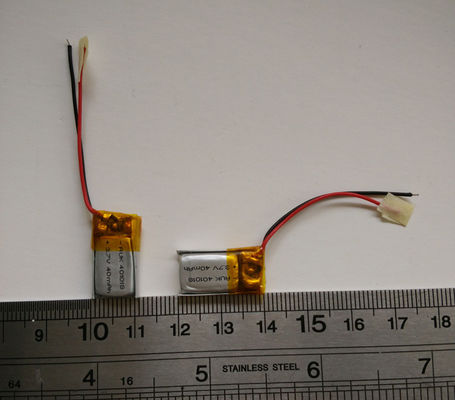

051012 KC certificate battery 3.7v lithium polymer battery rechargeable lipo battery |
Dimension( thickness*width*length) | 5*10*12(mm) |
| Charge voltage | 4.2V | |
| Nominal voltage | 3.7V | |
| Nominal capacity | 40mAh | |
| Fully charge voltage | 4.2v | |
| Ship out volatge | 3.85-4.1v |
| Battery specification | Charge current | Standard Charging:0.5C (20mA) |
| Rapid charge:1.0C(40mA) | ||
| Charging method | Charge with constant current 0.5c to 4.2V, then chagre with constant voltage 4.2v till until charge current is less than 0.01C | |
| Standard discharge current | 0.2C(8mA) | |
| Max.discharge current | 1C(40mA) | |
| Discharge cut-off voltage | 3.0v | |
| Operating enviroment | Charging:10℃~45℃ | |
| Discharging:-10℃~60℃ | ||
| Storage temperature | -10℃~45℃ | |
| Cell Weight | Approx: 1g | |
| Battery recyle time | 500 times | |
| Warranty | 12 months |
| Certificates | KC,UL1642(40mAh),UN38.3 |
| Other battery | Lithium polymer battery, Button lithium battery High-magnification lithium battery,18650 |
| Warning | Do not overcharge, force charge, short circuit, disassemble, deform, heat or place the battery near a direct flame.Any of the above actions could cause it to ignite, explode or become damaged. |
| Keep this battery out of the reach of children. | |
| When storing the battery or throwing it away, be sure to cover with tape. |
| Main Features | Thin format, light weigh, large area, and flexibility in design. |
| Easily customized, Energy density, High capacity. |
| Applications | Smart wearable devices, smart cards, smart electronics. |
| Earphone, power bank,MPS, Tablet PC. laptop,GPS. | |
| Medical devices, electric children toys, electric shoes, electric blanket. | |
| Intelligent door lock, intelligent lighting, emergency light, industrial cameras. |
Lithlium battery packaging:
1,Packing in a tray +inner box+carton box
2,Single battery packing in PE bag+ inner box+ carton box
3,Customized package etc...
Shipping method:
1,For samples, usually by express or by air
2,For orders, by truck, by air ,by express or by sea depends on customer requirement
|
Thickness/m
m |
Model number
|
nomina
voltage |
dimension
(mm) |
Cell mass
|
|
4mm
|
401525-120mAh
|
3.7V
|
4*20*35
|
A
|
|
402025-150mAh
|
3.7V
|
4*15*25
|
A
|
|
|
402030-180mAh
|
3.7V
|
4*25*35
|
A
|
|
|
402035-230mAh
|
3.7V
|
4*30*40
|
A
|
|
|
402040-300mAh
|
3.7V
|
4*25*30
|
A
|
|
|
4025100-1000mAh
|
3.7V
|
4*30*35
|
A
|
|
|
4025130-1500mAh
|
3.7V
|
4*20*40
|
A
|
|
|
402530-250mAh
|
3.7V
|
4*20*25
|
A
|
|
|
402535-350mAh
|
3.7V
|
4*20*30
|
A
|
|
|
403035-400mAh
|
3.7V
|
4*30*48
|
A
|
|
|
403040-450mAh
|
3.7V
|
4*25*100
|
A
|
|
|
403048-600mAh
|
3.7V
|
4.5*42*61
|
A
|
|
|
454261-1500mAh
|
3.7V
|
4*25*130
|
A
|
|
|
5mm
|
503035-500mAh
|
3.7V
|
5.8*27*25
|
A
|
|
503035-500mAh
|
3.7V
|
5*30*35
|
A
|
|
|
503450-1000mAh
|
3.7V
|
5*20*30
|
A
|
|
|
582725-400mAh
|
3.7V
|
5*20*40
|
A
|
|
|
502035-300mAh
|
3.7V
|
5*25*40
|
A
|
|
|
502540-500mAh
|
3.7V
|
50*25*30
|
A
|
|
|
505060-2000mAh
|
3.7V
|
5*20*35
|
A
|
|
|
502540-500mAh
|
3.7V
|
5*30*35
|
A
|
|
|
502030-250mAh
|
3.7V
|
5*34*50
|
A
|
|
|
502530-300mAh
|
3.7V
|
5*30*40
|
A
|
|
|
502040-380mAh
|
3.7V
|
5*25*40
|
A
|
|
|
503040-600mAh
|
3.7V
|
5*37*59
|
A
|
|
|
503759-1200mAh
|
3.7V
|
5*50*60
|
A
|
|
|
504050-1200mAh
|
3.7V
|
5*40*50
|
A
|
|
|
504060-1500mAh
|
3.7V
|
5*40*60
|
A
|
|
|
505573-2500mAh
|
3.7V
|
5*55*73
|
A
|
|
|
6mm
|
602030-300mAh
|
3.7V
|
6*25*35
|
A
|
|
602040-450mAh
|
3.7V
|
6*20*30
|
A
|
|
|
601525-170mAh
|
3.7V
|
6*25*30
|
A
|
|
|
602535-500mAh
|
3.7V
|
6*12*35
|
A
|
|
|
602035-400mAh
|
3.7V
|
6*20*25
|
A
|
|
|
602535-500mAh
|
3.7V
|
6*30*30
|
A
|
|
|
602540-650mAh
|
3.7V
|
6*20*35
|
A
|
|
|
602025-250mAh
|
3.7V
|
6*20*40
|
A
|
|
|
602530-400mAh
|
3.7V
|
6*15*25
|
A
|
|
|
603030-500mAh
|
3.7V
|
6*30*48
|
A
|
|
|
601235-200mAh
|
3.7V
|
6*25*35
|
A
|
|
|
603048-1000mAh
|
3.7V
|
6*30*35
|
A
|
|
|
603035-600mAh
|
3.7V
|
6*25*40
|
A
|
|
|
603030-500mAh
|
3.7V
|
6*30*30
|
A
|
|
|
602248-650mAh
|
3.7V
|
6*22*48
|
A
|
|
|
603040-600mAh
|
3.7V
|
6*30*40
|
A
|
|
|
603450-1200mAh
|
3.7V
|
6*34*50
|
A
|
|
|
604050-1500mAh
|
3.7V
|
6*40*50
|
A
|
|
|
605080-3000mAh
|
3.7V
|
6*50*80
|
A
|
|
|
605060-2500mAh
|
3.7V
|
6*50*60
|
A
|
|
|
654060-2000mAh
|
3.7V
|
6.5*40*60
|
A
|
|
|
606090-4000mAh
|
3.7V
|
6*60*90
|
A
|
|
|
6060100-5000mAh
|
3.7V
|
6*60*100
|
A
|
|
|
7mm
|
701240-280mAh
|
3.7V
|
7*12*40
|
A
|
|
702025-300mAh
|
3.7V
|
7*20*25
|
A
|
|
|
702530-500mAh
|
3.7V
|
7*25*30
|
A
|
|
|
702030-400mAh
|
3.7V
|
7*20*30
|
A
|
|
|
702040-500mAh
|
3.7V
|
7*20*40
|
A
|
|
|
703040-800mAh
|
3.7V
|
7*30*40
|
A
|
|
|
701850-550mAh
|
3.7V
|
7*18*50
|
A
|
|
|
702035-450mAh
|
3.7V
|
7*20*35
|
A
|
|
|
702530-500mAh
|
3.7V
|
7*25*30
|
A
|
|
|
701345-400mAh
|
3.7V
|
7*13*45
|
A
|
|
|
701535-320mAh
|
3.7V
|
7*15*35
|
A
|
|
|
702535-600mAh
|
3.7V
|
7*25*35
|
A
|
|
|
702040-500mAh
|
3.7V
|
7*20*40
|
A
|
|
|
703048-1100mAh
|
3.7V
|
7*30*48
|
A
|
|
|
703450-1300mAh
|
3.7V
|
7*34*50
|
A
|
|
|
755060-3000mAh
|
3.7V
|
7.5*50*60
|
A
|
|
|
755590-5000mAh
|
3.7V
|
7.5*55*90
|
A
|
|
|
7565113-8000mAh
|
3.7V
|
7.5*65*113
|
A
|
|
|
8mm
|
801350-500mAh
|
3.7V
|
8*13*50
|
A
|
|
802045-750mAh
|
3.7V
|
8*20*45
|
A
|
|
|
801350-500mAh
|
3.7V
|
8*13*50
|
A
|
|
|
802025-350mAh
|
3.7V
|
8*20*25
|
A
|
|
|
802540-800mAh
|
3.7V
|
8*25*40
|
A
|
|
|
803030-750mAh
|
3.7V
|
8*30*30
|
A
|
|
|
802050-800mAh
|
3.7V
|
8*20*50
|
A
|
|
|
802040-650mAh
|
3.7V
|
8*20*40
|
A
|
|
|
802035-500mAh
|
3.7V
|
8*20*35
|
A
|
|
|
802025-350mAh
|
3.7V
|
8*20*25
|
A
|
|
|
802030-400mAh
|
3.7V
|
8*20*30
|
A
|
|
|
802035-500mAh
|
3.7V
|
8*20*35
|
A
|
|
|
803035-800mAh
|
3.7V
|
8*30*35
|
A
|
|
|
802535-700mAh
|
3.7V
|
8*25*35
|
A
|
|
|
803040-1000mAh
|
3.7V
|
8*30*40
|
A
|
|
|
803450-1500mAh
|
3.7V
|
8*34*50
|
A
|
|
|
803060-1800mAh
|
3.7V
|
8*30*60
|
A
|
|
|
803048-1200mAh
|
3.7V
|
8*30*48
|
A
|
|
|
804050-2000mAh
|
3.7V
|
8*40*50
|
A
|
|
|
9mm
|
902025-400mAh
|
3.7V
|
9*20*25
|
A
|
|
903660-2500mAh
|
3.7V
|
9*36*60
|
A
|
|
|
903048-1500mAh
|
3.7V
|
9*30*48
|
A
|
|
|
902030-500mAh
|
3.7V
|
9*20*30
|
A
|
|
|
903060-2000mAh
|
3.7V
|
9*30*60
|
A
|
|
|
955565-5000mAh
|
3.7V
|
9.5*55*65
|
A
|
|
|
9060100-8000mAh
|
3.7V
|
9*60*100
|
A
|
|
|
902030-500mAh
|
3.7V
|
9*20*30
|
A
|
|
|
902535-800mAh
|
3.7V
|
9*25*35
|
A
|
|
|
902040-700mAh
|
3.7V
|
9*20*40
|
A
|
|
|
902240-850mAh
|
3.7V
|
9*22*40
|
A
|
|
|
903665-2500mAh
|
3.7V
|
9*36*65
|
A
|
|
|
906090-6000mAh
|
3.7V
|
9*60*90
|
A
|
|
|
10mm
|
102540-1200mAh
|
3.7V
|
10*25*40
|
A
|
|
103450-2000mAh
|
3.7V
|
10*34*50
|
A
|
|
|
104050-2500mAh
|
3.7V
|
10*40*50
|
A
|
|
|
102050-1000mAh
|
3.7V
|
10*20*50
|
A
|
|
|
103048-1500mAh
|
3.7V
|
10*30*48
|
A
|
|
|
104060-3000mAh
|
3.7V
|
10*40*60
|
A
|
|
|
126090-8000mAh
|
3.7V
|
12*60*90
|
A
|
|
|
103035-1100mAh
|
3.7V
|
10*30*35
|
A
|
|
|
103450-1800mAh
|
3.7V
|
10*34*50
|
A
|
|
|
103443-1500mAh
|
3.7V
|
10*34*43
|
A
|
|
|
103040-1200mAh
|
3.7V
|
10*30*40
|
A
|
|
|
103665-3000mAh
|
3.7V
|
10*36*65
|
A
|
|
|
1060100-8000mAh
|
3.7V
|
10*60*100
|
A
|
|
|
1163120-10000mAh
|
3.7V
|
11*63*120
|
A
|
|
|
124065-4000mAh
|
3.7V
|
12*40*65
|
A
|
|
|
1260100-10000mAh
|
3.7V
|
12*60*100
|
A
|
