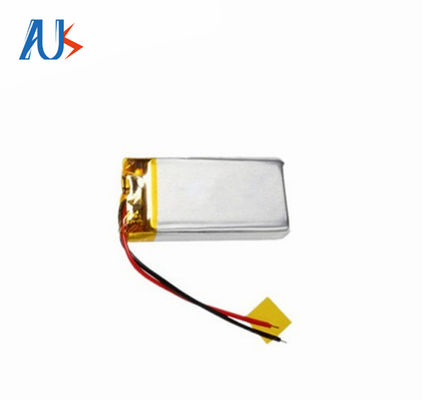

Small 3.7v 120mah LiPo Battery Rechargeable 401230 Battery MSDS

Name: Small 3.7v 120mah LiPo Battery Rechargeable 401230 Battery MSDS
Brand: AUK
SKU: 401230
Rating: 4.7 (103 reviews)

MOQ:	100PCS
Price:	Negotiable
Standard Packaging:	Carton box
Delivery Period:	5-8 Work Days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	10000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

AUK

Certification

MSDS

Model Number

401230

Capacity:

120mAh

Charge Rate:

Chemistry:

Lithium Polymer

Cycle Life:

500 Cycles

Dimensions:

30mm X 12mm X 4mm

Fully Charged Voltage:

4.2V

Voltage:

3.7V

Warranty:

12 Months, 3months-1year

Minimum Order Quantity:

100PCS

Price:

Negotiable

Packaging Details:

Carton box

Delivery Time:

5-8 Work Days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

10000pcs/day

High Light:

small 3.7v 120mah lipo battery

401230 battery

3.7v 120mah lipo battery

Product Description

401230 Rechargeable Small LiPo Battery 3.7v 120mah For Medical Device

Features:

1> 100% AUK brand new Small Lipo Battery

2> High quality and can customized Battery

3> Built-in protection circuit PCM for prevent over charging or over discharging

4> Size: 4 mm(H)*12 mm(W)*30 mm(L)

5> Rating: DC3.7V 120mAh

Modle:401230

size:H=4mm W=12mm L=30mm

weight:3.3g/pcs

voltage: 3.7 V

capacity: 120mAh, 1C discharge

Charging current: standard charging, fast charging: 1.0C: 0.5C

Standard charging method: 0.5C CC (constant current) charge to 4.25V, then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C

The maximum charge current: 1C

Maximum discharge current: 1C

Discharge cut-off voltage: 2.75V

The discharge temperature: -20 degrees C~+60 degrees C

Charging time: 2-4hrs (standard); 2hrs (fast)

Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection

It can be recharged repeatedly

Built-in protection circuit PCM for prevent over charging or over discharging.

It can not be use for any drone or other aircraft !

Item			Rating	Note
3.1 Capacity		Typical	120mAh	Discharge:0.2CmA cut off Voltage:3.0V for cell
		Minimum	110mAh
3.2 Nominal Voltage			Average 3.7V	Discharge:0.2CmA cut off Voltage:3.0V for cell
3.3 AC Impedance Resistance			≤420mΩ
3.4 Discharge Cut-off Voltage			3.00V
3.5 Charge Current			24mA	Standard Charge
3.6 Charge Voltage			4.2V
3.7 Max. Charge Voltage			4.23V
3.8 Storage humidity			< 75%RH	Hygrometer
3.9 Max. Charge Current			120mA	1.0CmA
3.10 Max. Discharge Current			120mA	1.0 CmA
3.11 Weight			Approx 3.3g
3.12 Operating Temperature	Charge		0~+45°C
	Discharge		-20~+60°C
3.13 Storage Temperature	less than 1 month		-20~+45°C	Recommended storage temperature: 20°C,at the shipment state
	less than 3 months		-20~+35°C
