37Wh Custom LiPo Battery 3.7V 10000mAh Li-Polymer Rechargeable

MOQ: 100PCS
Price: Negotiable
Standard Packaging: Carton box
Delivery Period: 5-8 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
AUK
Certification
MSDS
Model Number
1160110 Or Customize
Cell Size:
11*60*110mm(T*W*L)
Configuration:
1S1P
Connector Type:
JST...etc
Model:
LiPo Battery
Nominal Voltage:
3.7V
Norminal Capacity:
10Ah
Warranty:
1 Year
Wight:
180g
Minimum Order Quantity:
100PCS
Price:
Negotiable
Packaging Details:
Carton box
Delivery Time:
5-8 Work Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000pcs/day
High Light:

37Wh Custom LiPo Battery

,

Custom LiPo Battery 10000mAh

,

LiPo Battery 3.7V 10000mAh

Product Description
Custom LiPo Battery 3.7V 10000mAh 37Wh Li-Polymer Rechargeable For Portable DVD

Description:

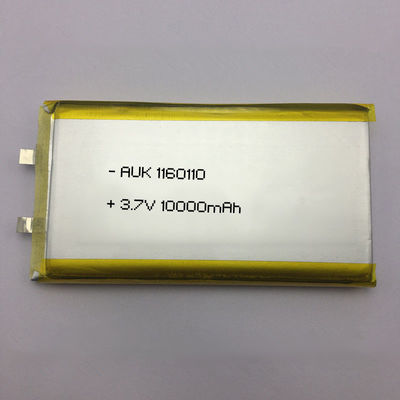

AUKPOWER Custom LiPo Battery AUK 1160110  3.7V 10000mAh:

(1): We custom lipo battery AUK 1160110as per buyers requests, size is 11mm*60mm*110mm, rated voltage is 3.7v, charging voltage is 4.2V, rated capacity is 10000mAh, feel free to contact us if you have other size requests;



(2): After add PCB/PCM protection, size will be arounds 11mm*60mm*112mm ;



(3): We can custom connectors by customers needed;



(4): Custom lipo battery application is based on buyers requests, such as this customs 553640, width is 36mm and length 40mm, square size for special requests, other size are available custom;



Electrical characteristics:

1. if your device still have a PCM protector board lie on motherboard of your device. it will can't work well.
please remove off this PCM from our this li battery. so this battery can work well.
2. if your old one li battery have a PCM board on top of li battery. please instead this old pcm to our new li battery . maybe our PCM board don't fit your device. each device there are different requirements with PCM board.
3.Standard Charging method :0.5C (constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
4. Rated Capacity : The capacity means the discharge capacity of the cell, which is measured with discharge current of 0.2C with 3.0V cut-off voltage after standard charge.
5. Charging time :Standard Charging:3.0 hours(Ref.) ,Rapid charge: 2.0 hours(Ref.)
6. Max. charge current :1.0C
Max. discharge current :1.0C
Discharge cut-off voltage :3.0V
7. Operating temperature :Charging: -20℃~60℃ Discharging:-20℃~60℃
8. Storage temperature : -10℃~ +45℃
9. Cycle life: 600 cycles,Stable performance with 100% in house testing
10. Warranty: 18 Months
11. Test condition:
Charge:0.5C to 4.2V
Discharge:0.2C to 3.0V
70% or more of 1st cycle capacity at 0.2C discharge of Operation
Self-discharge :Residual capacity >90%
After the standard charging, storied the cells under the condition for 30 days, then measured the capacity with 0.2C till 3.0V
12:Temperature characteristics :
-20℃: ≥65%
23℃: 100%
60℃: ≥96%
---- According to item at 23±5℃.
----Capacity comparison at each temperature, measured with constant discharge current 0.2C with 3.0V cut-off. Percentage as an index of the capacity compared with 100% at 23℃
13 : Mechanical characteristics:
----- Vibration Test : No leakage / No fire
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz an 55Hz,the excursion of the vibration is 1.6mm.The cell shall be vibrated for 30 minutes per axis of XYZ axes.
----- Drop Test : No fire/ no leakage.
The cell is to be dropped from a height of meter twice onto concrete ground.

Application:LED lighting, Underwater lighting system, Bluetooth device, Mp3/Mp4 player, Safety lamp, GPS, Mobile phone, E-book, Power bank, Portable DVD, Walkie taklie, Notebook, Tablet PC, PDA, Game player, Pos machine, Consumer electronics device, Medical devices, Flash lighting, Garden lighting, Karaoke, Digital Camera, Driving recoder, Recording pen, Headset , Dashcam, Satnav, Navigation, Baby monitor, Navigation, Car camera, Drift camera, Taillight, Bluetooth speaker, Instrumentation, Smart lock, Medical device, Digital light, Air purifier, Project Desigh ,etc.

37Wh Custom LiPo Battery 3.7V 10000mAh Li-Polymer Rechargeable 0



37Wh Custom LiPo Battery 3.7V 10000mAh Li-Polymer Rechargeable 1



Company Information

Hunan AUK New Energy Co., Ltd. (AUK Power)
.

37Wh Custom LiPo Battery 3.7V 10000mAh Li-Polymer Rechargeable 2
