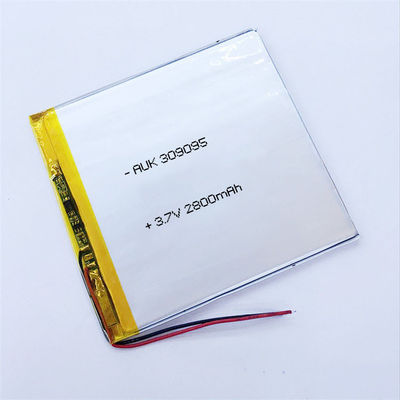

3mm Ultra Thin LiPo Battery 500 Cycles Li Ion Battery 3.7v 2800mah

3mm Ultra Thin LiPo Battery 500 Cycles Li Ion Battery 3.7v 2800mah

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: Carton box
Delivery Period: 5-8 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000pcs/day
Detail Information
Place of Origin
China
Brand Name
AUK
Certification
MSDS
Model Number
309095
Cell Size:
3*90*95mm(T*W*L)
Charge Rate:
1C
Chemistry:
Lithium Polymer
Connector Type:
JST
Cycle Life:
500 Cycles
Rated Voltage:
3.7V
Nominal Capacity:
2800mAh
Rechargeable:
Yes
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
Carton box
Delivery Time:
5-8 Work Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000pcs/day
High Light:

3mm Ultra Thin LiPo Battery

,

Ultra Thin LiPo Battery 500 Cycles

,

Li Ion Battery 3.7v 2800mah

Product Description
3mm Ultra Thin Lipo Battery 3.7V 2800mAh With ProtectiveFor Toy Equipment


Features:
Ultra thin AUK 309095 3.7V 2800mAh Rechargeable Li-Po battery.



This ultra thin AUK 309095 cell is our AUK 3mm thick polymer with rated capacity over 2800mAh;
Built-in intelligent protection PCB charging module, effectively prevent over charge, over discharge, over current, short circuit.
it is widely used in walkie-talkie, PSP, electric toys, MP5, GPS, remote control, iPod, tablet, Bluetooth speaker, headset, camera, MID, POS machine, solar lamp and other devices with the same battery size and capacity.
Product features:
1. Over charge Protection
2. Over discharge protection
3. Overcurrent protection
4. Short protection




Standard Capacity: 2800mAh
Standard Voltage: 3.7V
Charge Current: 2800mAh To 4.2V
Charge Voltage :4.20+/-0.03V
Charge Time : About 3 hours
Discharge Cut off Voltage: 3.0V
Thickness: 3.0+/-0.5mm
Width: 90.0+/-1.0mm
Length: 95.0+/-1.0mm

PCM: Protect circuit module board(PCM) inside, with red(+) and black(-) wire lead out.

Rechargeable times: >500Composition: Lithium polymer

Standard charging method: 0.5C CC (constant current) charge to 4.25V, then CV
(constant voltage 4.2V) charge till charge current is less than or equal
to 0.05CThe maximum charge current: 1C

Maximum discharge current: 1C

Discharge cut-off voltage: 2.75V
The discharge temperature: -20 degrees C~+60 degrees C

Charging time: 2-4hrs (standard); 2hrs (fast)





3mm Ultra Thin LiPo Battery 500 Cycles Li Ion Battery 3.7v 2800mah 0



Product Description

No. Item Specifications
1 Model AUK309095 Lipo Battery
2 Size 3.0*90*95mm (thickness*width*length)
3 Charge voltage 4.2V
4 Nominal voltage 3.7V
5 Nominal capacity 2800mAh
6 Charge current Standard Charging:0.5C Rapid charge:1.0C
7 Standard Charging method 0.5C(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C
8 Charging time Standard Charging:3.0hours(Ref.)
Rapid charge:2hours(Ref.)
9 Max.charge current 1C
10 Max.discharge current constant current 1C ,transient peak current 2C
11 Discharge cut-off voltage 2.45V or 3.0V
12 Operating temperature -20℃ to 60℃
13 Storage temperature 25℃
Other Similar Ultra Thin Lipo Battery Model List
Type Model Capacity
(mAh)

Voltage

(V)

Thickness
(mm)
Width
(mm)
Length
(mm)
Weight
(g)
1215 301215 25 3.7 ≤3.0 ≤12.5 ≤15.5 1.0
401215 35 3.7 ≤4.0 ≤12.5 ≤15.5 2.0
501215 45 3.7 ≤5.0 ≤12.5 ≤15.5 2.0
1220 301220 40 3.7 ≤3.0 ≤12.5 ≤20.5 2.0
401220 60 3.7 ≤4.0 ≤12.5 ≤20.5 2.5
451220 70 3.7 ≤4.5 ≤12.5 ≤20.5 2.5
501220 80 3.7 ≤5.0 ≤12.5 ≤20.5 3.0
601220 100 3.7 ≤6.0 ≤12.5 ≤20.5 3.0
1225 401225 90 3.7 ≤4.0 ≤12.5 ≤25.5 3.0
501225 120 3.7 ≤5.0 ≤12.5 ≤25.5 3.5
601225 150 3.7 ≤6.0 ≤12.5 ≤25.5 4.0
1230 401230 110 3.7 ≤4.0 ≤12.5 ≤30.5 3.0
501230 130 3.7 ≤5.0 ≤12.5 ≤30.5 4.0
601230 160 3.7 ≤6.0 ≤12.5 ≤30.5 5.0
1235 301235 90 3.7 ≤3.0 ≤12.5 ≤35.5 3.0
401235 120 3.7 ≤4.0 ≤12.5 ≤35.5 3.5
501235 160 3.7 ≤5.0 ≤12.5 ≤35.5 4.0
601235 200 3.7 ≤6.0 ≤12.5 ≤35.5 6.0
1245 401245 160 3.7 ≤4.0 ≤12.5 ≤45.5 4.0
501245 200 3.7 ≤5.0 ≤12.5 ≤45.5 6.0
601245 240 3.7 ≤6.0 ≤12.5 ≤45.5 6.5
701245 280 3.7 ≤7.0 ≤12.5 ≤45.5 7.0
1430 401430 130 3.7 ≤4.0 ≤14.5 ≤30.5 3.5
451430 150 3.7 ≤4.5 ≤14.5 ≤30.5 4.0
551430 180 3.7 ≤5.5 ≤14.5 ≤30.5 5.0
651430 210 3.7 ≤6.5 ≤14.5 ≤30.5 6.0
1435 501435 200 3.7 ≤5.0 ≤14.5 ≤35.5 6.0
601435 250 3.7 ≤6.0 ≤14.5 ≤35.5 6.5
701435 300 3.7 ≤7.0 ≤14.5 ≤35.5 7.0
1530 501530 180 3.7 ≤5.0 ≤15.5 ≤30.5 5.0
601530 220 3.7 ≤6.0 ≤15.5 ≤30.5 6.0
701530 250 3.7 ≤7.0 ≤15.5 ≤30.5 6.5



3mm Ultra Thin LiPo Battery 500 Cycles Li Ion Battery 3.7v 2800mah 1

Company Information

Hunan AUK New Energy Co., Ltd. (AUK Power)
Welcome to AUK Power!



Our business scope has been extended to R&D, manufacturing, marketing & sales, engineering and service with following industries:Lithium Polymer Battery, Ultra Thin Lipo Battery, Rechargeable Lipo Battery, Mini Lipo Battery, Small Lipo Battery, Custom Lipo Battery as customer request etc.



3mm Ultra Thin LiPo Battery 500 Cycles Li Ion Battery 3.7v 2800mah 2



We are a professional experienced supplier of Small Lipo Batteries, If the items you need are not list in our shop, or you need more or less qty, pls feel free to contact us to get a special discount.
