| MOQ: | 100PCS |
| Price: | Negotiable |
| Standard Packaging: | Carton box |
| Delivery Period: | 5-8 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10000pcs/day |
Description:

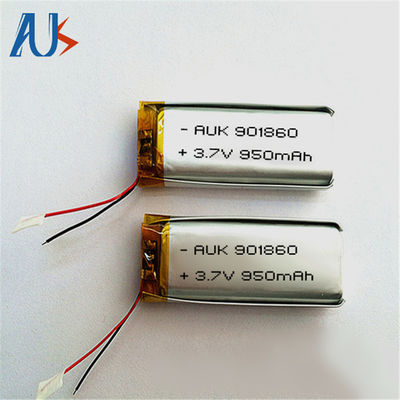

Custom LiPo Battery 3.7V 950mAh 901860 cell:
(1): Based on buyer requests, it needs width as smaller as possible and capacity more larger more better, the AUK 901860 custom lipo battery is customized, with cell size 9mm*18mm*60mm, after built-ion PCB/PCM protection, size about 9mm*18mm*62mm;
(2): Custom lipo battery 901860 rated voltage 3.7V, charging voltage is 4.2V, if need custom high voltage 3.8v/4.3v lipo battery, please contact us and we can customize.
(3): Cell thick, width, length all can custom based on your requests, the capacity related with the custom size.
(4): We can custom connector as per your requests.
Details:
Type
|
AUK 901860
|
Standard Capacity
|
950MAH
|
Nominal Voltage
|
3.7V
|
Connector (normal)
|
1.0mm/1.25mm/2.0mm pitch
|
Dimension Range with PCB
|
Length:62≤+2.5/-0.5mm
|
Width:18≤±0.5mm
|
|
Thickness:9.0≤±0.3mm
|
|
PCM /PCB
|
Customized (Discharge cut-off voltage :3.0V or 2.4V)
|
Delivery time
|
5-7 days (in stock) 15- 35days (out of stock)
|
Free samples
|
Yes
|
AUK Other Hot Selling Lithium Polymer Battery Model for your Choose
NO.
|
Model
|
Capacity(mAh)
|
|
NO.
|
Model
|
Capacity(mAh)
|
1
|
252040
|
155
|
|
14
|
601235
|
200
|
2
|
301738
|
160
|
15
|
302535
|
210
|
|
3
|
401730
|
160
|
16
|
551240
|
220
|
|
4
|
302035
|
160
|
17
|
701430
|
230
|
|
5
|
601230
|
170
|
18
|
382035
|
230
|
|
6
|
501530
|
170
|
19
|
342431
|
240
|
|
7
|
500850
|
180
|
20
|
252540
|
250
|
|
8
|
301850
|
180
|
21
|
651730
|
270
|
|
9
|
302530
|
180
|
22
|
382035
|
280
|
|
10
|
402030
|
180
|
23
|
402040
|
280
|
|
11
|
501240
|
190
|
24
|
501743
|
285
|
|
12
|
351455
|
200
|
25
|
601341
|
290
|
|
13
|
451635
|
200
|
26
|
253048
|
340
|
|
OEM/ODM All models lipo battery can be customized for you
|
||||||
Hunan AUK New Energy Co., Ltd. (AUK Power)
