| MOQ: | 4 |
| Price: | USD$165~USD$198 |
| Standard Packaging: | Standard Carton Box/DG Packages |
| Delivery Period: | 5~9 working days |
| Payment Method: | T/T, Western Union,PayPal |
| Supply Capacity: | 200000 pieces per month |

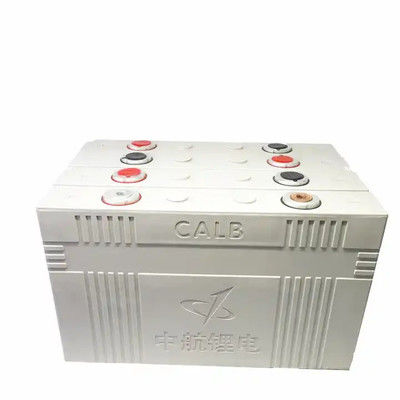

CALB Solar Battery Large Capacity CA400 3.2V 400Ah LiFePO4 Cells For Solar Systems
Lifepo4 calb 400ah LiFePo4 CALB CA400
Specification:
| Battery Model | 3.2V 400Ah LiFePO4 Battery |
| Battery Size | 71mm(W)*281mm(H)*450mm(L) |
| Nominal Capacity | 400ah |
| Nominal Voltage | 3.2V |
| Max Charge Voltage | 3.6V |
| Charging Method | CC-CV (constant voltage with limited current) |
| Charging Current | 0.3C (120A) |
| Max. Discharge Current | 1C Constant And 3C Peak (1200A) 10 Seconds |
|
Operating Temperature
|
Charge: 0 to 45 °C |
| Discharge:-20 to 60°C |
Safety Performance (Under PCB Condition):
| Item | Test name | Result |
| 1 | Over charge | No fire,no explosion |
| 2 | Over discharge | No fire,no explosion |
| 3 | Short Circuit | No fire,no explosion |
| 4 | Drop | No fire,no explosion,no leakage |
| 5 | Hot oven | No fire,no explosion |
| 6 | Crush | No fire,no explosion |
| 7 | Needle puncture | No fire,no explosion |
Li-ion Battery Feature & Advantage:
1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, Over 2000 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Small size, light weight:
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Caution:
1. Use a specified charger.
2. Do not disassemble the battery.
3. Do not short circuit the battery terminals.
4. Do not throw the battery into fire or heat.
5. Keep the battery in a cool dry surroundings if it stands by.
