| MOQ: | 100 |
| Price: | USD$1.25~USD$1.5 |
| Standard Packaging: | Standard Carton Box |
| Delivery Period: | 2~5 working days |
| Payment Method: | T/T, Western Union, PayPal |
| Supply Capacity: | 500000 pieces per month |

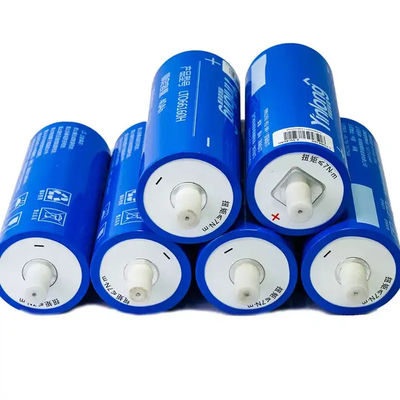

YINLONG LTO 66160 2.3V 40Ah Lithium Titanate Battery 66160K For Solar
Battery type: LTO 66160
Chemistry: Lithium Titanate Oxide
Nominal capacity: 40Ah
Nominal voltage: 2.3V
Weight: 1.25kg
Internal impedance: ≤0.7mΩ
Cycle life:≥25000 times, 80% DOD, capacity rentation≥80%
Dimension: 66*160mm
Cell height: 202mm (including terminals)
Max.cont.charging/discharging current: 400A(10C)
Max.pulse charging/discharging current: 800A(20C,10s)
Charging cut-off voltage: 2.9V
Discharging cut-off voltage: 1.5V
Applications: Energy Storage/UPS
Operation temperature: -50-65℃
life duration: 30 years
Specification:
| Battery Model | LTO 66160 |
| Battery Size | 66*66*160mm |
| Nominal Capacity | 40Ah |
| Nominal Voltage | 2.3V |
| Max Charge Voltage | 2.9V |
| Charging Method | CC-CV (constant voltage with limited current) |
| Max.Charging Current | 10C |
| Max. Discharging Current | 10C~20C |
|
Operating Temperature
|
Charge: 0 to 45 °C |
| Discharge:-20 to 60°C |
Safety Performance (Under PCB Condition):
| Item | Test name | Result |
| 1 | Over charge | No fire,no explosion |
| 2 | Over discharge | No fire,no explosion |
| 3 | Short Circuit | No fire,no explosion |
| 4 | Drop | No fire,no explosion,no leakage |
| 5 | Hot oven | No fire,no explosion |
| 6 | Crush | No fire,no explosion |
| 7 | Needle puncture | No fire,no explosion |
Caution:
DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
MISUSING OR MISHANDLING LITHIUM ION BATTERIES CAN POSE A SERIOUS RISK OF PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
ONLY USE WITH PROPER CIRCUITRY IN A PROTECTED BATTERY PACK
ONLY USE WITHIN MANUFACTURER LISTED SPECIFICATIONS
DO NOT STORE LOOSE BATTERY IN A POCKET, PURSE ETC. - ALWAYS USE A PROTECTIVE CASE OR BOX
KEEP AWAY from metal objects to prevent short circuiting
DO NOT short circuit
DO NOT use if wrapper or insulator is damaged or torn
DO NOT use if damaged in any way
DO NOT overcharge or over-discharge
DO NOT modify, disassemble, puncture, cut, crush, or incinerate
DO NOT expose to liquids or high temperatures
DO NOT solder, spot weld only
User must be familiar with handling lithium ion batteries before purchase
Usage of batteries is AT YOUR OWN RISK
ALWAYS charge in or on a fire-proof surface and never leave charging batteries unattended
RESELLERS MUST FORWARD ALL WARNINGS TO ALL CUSTOMERS FOR THEIR REFERENCE AND SAFETY
Because of the influence of temperature and environment, battery capacity will change, there will be 100-200mAh capacity difference.
Appliation:
Packaged batteries,are used in electric cars, electric scooters, as well as in other types of electric transport.Suitable in power tool battery (battery For makita, For milwaukee, For Dewalt,For Worx,For Ryobi, etc.)
Warranty:
*We warrant our battery for 1 year from the date of invoice of this product.
*Replacement items, if issued,do not restart or in any way extend the warranty period.
*AUK warrants this product to be free from manufacturer's defects for 1 year.
*The customer is responsible for returning the defective product to AUK,after repaired or rechanged,AUK are responsible for transportation the product to the customer.
*All replaced products or parts will become property of AUK.
Out-of-warranty products:
*The product is modified without AUK approval.
*Obvious attack of appearance whatever it is.
*The product is subjected to unusual physical or electrical stress, including physical damage, burnt components and broken connectors.
Sample:
*Samples test are available.
*Can produce according to your sample.
*Can produce the battery according to your needs.
*Size,color,weight,terminal,etc can be produced by your requirements.
Business contacting:
*24-Hours Online. Your offer will be respond promptly.
*OEM, ODM, Wholesale are welcomed.
*Please feel free to contact us.
Hunan AUK New Energy Co., Ltd. (AUK Power)
More details info,pls kindly feel free to contact with us!
|
|
