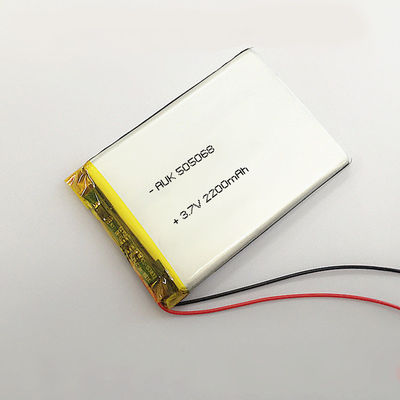

GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery

GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: Carton box
Delivery Period: 5-8 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000pcs/day
Detail Information
Place of Origin
China
Brand Name
AUK
Certification
MSDS
Model Number
505068
Chemistry:
Lithium Polymer
Rated Voltage:
3.7v
Cycle Life:
More Than 500 Times
Dimensions:
68mm X 50mm X 5mm
Fully Charged Voltage:
4.2V
Rated Capacity:
2200mAh
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
Carton box
Delivery Time:
5-8 Work Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000pcs/day
High Light:

2200mah small lipo battery

,

3.7v small lipo battery

,

3.7v 2200mah lipo battery

Product Description
Small LiPo Battery 3.7V 2200mAh Lithium Rechargeable Battery For GPS

Specification

Model: Lipo battery AUK 505068
Size: Thickness 5mm, width 50mm, length: 68mm
Cpacity 2200mAh

Rated Voltage: 3.7V

Charging Voltage: 4.2V

Type: Lithium battery

Rechargeable: yes

Charging current: standard charging, fast charging: 1.0C: 0.5C
Standard charging method: 0.5C CC (constant current) charge to 4.25V,
then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C.
The maximum charge current: 1C
Maximum discharge current: 1C
Discharge cut-off voltage: 2.75V
The discharge temperature: -20 degrees C~+60 degrees C
Charging time: 4-7hrs (standard); 4hrs (fast)
Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection
It can be recharged repeatedly
Built-in protection circuit PCM for prevent over charging or over discharging.



Features:



1.100% original AUK brand new grade A battery.

2. High capacity, High and low temperature resistance, Explosion-proof design. wide range of temperature adaptation

3.The power is stable and durable, safety and no-leakage,multiple intelligent self-protection,intelligent power chip inside, tested under strict quality control standards.

4.Safer to use, green and environmentally friendly, and refuse to pollute,fits the low-carbon life style.

5.Do not throw the battery into the fire, the water, or high temperature.



Widely used for Aircraft,LED light,speaker,Tachograph Car DVR ,Bluetooth Earphone, mobile emergency power supply, MP3 ,MP4, GPS tracker, remote controllers, smart watch, MID, PDA, pos machines, interphone, voice recorder, leaning machine, backup powers, electric toys and other electronic devices




GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery 0



AUK LI-polymer Battery connector



GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery 1

AUK Lithium Polymer Batteries Customized PCB as customer request

GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery 2







GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery 3

AUK Li-Polymer Batteries Production Line and Progress

GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery 4

AUK Small Lipo Battery/Ultra thin Lithium Polymer Battery packing

GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery 5


Company Information

Hunan AUK New Energy Co., Ltd. (AUK Power)

GPS 3.7V 2200mAh Small LiPo Battery Rechargeable Lithium Battery 6



Welcome to contact us.
