| MOQ: | 100PCS |
| Price: | Negotiable |
| Standard Packaging: | Carton box |
| Delivery Period: | 5-8 Work Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10000pcs/day |
Description:

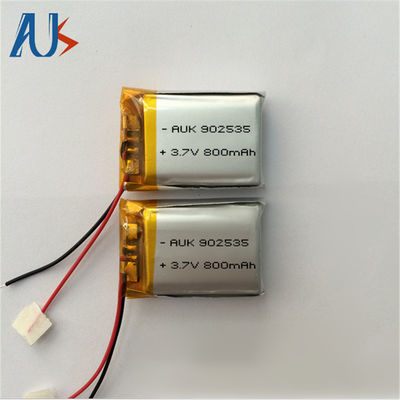

This link Lithium Polymer Battery is our AUKPOWER 3.7V 800mAh cell.
This 3.7V 800mAh Lithium Polymer battery available cell size is 9mm*25mm*35mm, if added PCB/PCM circuit, size will be arounds 9mm*25mm*37mm;
Our AUK Lithium Polymer Battery all brand new and grade A cell;
AUK 902535 Lithium Polymer Battery rated voltage 3.7V, charging Voltage 4.2V, rated capacity is 800mAh;
Lithium Polymer Battery AUK 902535 maximum charging and discharging current is 1C (800mA);
All Lithium Polymer Battery can add PCB/PCM protection circuit and lead wires/connector as per customers requests.
Attention: The AUK902535 lithium polymer battery maximum charge current: 1C and Maximum discharge current: 1C Discharge cut-off voltage: 2.75V The discharge temperature: -20 degrees C~+60 degrees C Charging time: 2-4hrs (standard); 2hrs (fast) Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection
Details:
Type
|
AUK 902535
|
Standard Capacity
|
800MAH
|
Nominal Voltage
|
3.7V
|
Connector (normal)
|
1.0mm/1.25mm/2.0mm pitch
|
Dimension Range with PCB
|
Length:37≤+2.5/-0.5mm
|
Width:25≤±0.5mm
|
|
Thickness:9.0≤±0.3mm
|
|
PCM /PCB
|
Customized (Discharge cut-off voltage :3.0V or 2.4V)
|
Delivery time
|
5-7 days (in stock) 15- 35days (out of stock)
|
Free samples
|
Yes
|
AUK Other Hot Selling Lithium Polymer Battery Model for your Choose
NO.
|
Model
|
Capacity(mAh)
|
|
NO.
|
Model
|
Capacity(mAh)
|
1
|
252040
|
155
|
|
14
|
601235
|
200
|
2
|
301738
|
160
|
15
|
302535
|
210
|
|
3
|
401730
|
160
|
16
|
551240
|
220
|
|
4
|
302035
|
160
|
17
|
701430
|
230
|
|
5
|
601230
|
170
|
18
|
382035
|
230
|
|
6
|
501530
|
170
|
19
|
342431
|
240
|
|
7
|
500850
|
180
|
20
|
252540
|
250
|
|
8
|
301850
|
180
|
21
|
651730
|
270
|
|
9
|
302530
|
180
|
22
|
382035
|
280
|
|
10
|
402030
|
180
|
23
|
402040
|
280
|
|
11
|
501240
|
190
|
24
|
501743
|
285
|
|
12
|
351455
|
200
|
25
|
601341
|
290
|
|
13
|
451635
|
200
|
26
|
253048
|
340
|
|
OEM/ODM All models lipo battery can be customized for you
|
||||||
