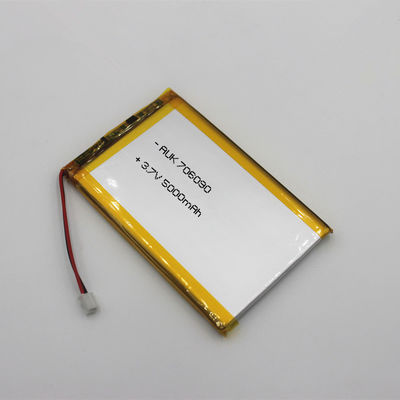

Lithium polymer battery 706090 3.7V 5000mAh lipo battery
| Items | Parameter | |
| Battery model | AUK706090 | |
| Nominal voltage | 3.7V | |
| Minimum capacity | 5000mAh(0.2C discharge) | |
| Charging voltage | 4.2V | |
| Discharging cut-off voltage | 2.75V | |
| Standard charging | 0.2C /4.2V | |
| Max charging | 1.0C /4.2V | |
| Standard discharging | 0.2C/3.0V | |
| Max discharging | continuous discharge | 1.0C/3.0V |
| non-continuous discharge | 2.0C/3.0V | |
| Shipment voltage | ≥3.85V | |
| Battery pack impedance | ≤50mΩ | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) |
-10℃~25℃ | (12 months ≥85% ) |
| -10℃ ~45℃ | (6 months ≥85% ) | |
| -10℃~55℃ | (1 month ≥90% ) | |
| 20±5℃ is the recommended storage temperature | ||
| Visual Inspection |
There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
| Reference standard | GB/T 18287-2013,IEC/EN61960, UL1642 | |
1. Lithium Polymer Battery Precautions and Safety Instructions
(1) Guarantee to keep the battery in good repair in 12 months from the shipment.
(2) Please use 0.5C current to charge up 60% capacity after the battery placed 3 months.
(3) Before Use the battery, carefully read the instruction manual and battery labels on the surface.
(4) Need to use the original battery charger, and should be placed in a dry ventilated place.
(5) Such as long-term when not in use, the battery charger to charge state half full, remove the battery from the device and separated, to avoid metal contact with the battery, causing
short-circuit or damage to the phenomenon.
(6) In use or during storage, battery found there has been high fever, leakage, odor, distortion and other anomalies, please stop using it immediately and stay away from the battery.
(7) Do not short-circuit the battery positive and negative, and careful not to allow the battery to moisture, to avoid danger.
(8) Using, keep away from heat, High pressure place, and do not beat, hit the battery.
(9) Battery end of life should be immediately removed from the equipment, Please properly handle security of spent batteries, do not put into fire or water.
(10) Shocks, high temperature, or contacts of sharp edge components should not be allowed in battery pack assembling process.
2. Storage of Lithium Polymer Battery
(1) Batteries should be charged to about 30% to 50% of capacity.
(2) Indoor storage in cool conditions without direct sun light on the packs or cartons.
(3) Store batteries in a dry location with low humidity, and a temperature range of –20°C to +30°C.
(4) Long-term storage can accelerate batteries self-discharge and lead to the deactivation of the batteries.To minimize the deactivation effect,store batteries in atemperature range of +10°C to +30°C.
(5) When charging for the first time after long-term storage,deactivation of batteries may have led to decreased capacity.Recover such batteries to original performance through repeating several cycles of fully charging and discharging.
(6) When storing batteries for more than 6 months,charge at least once every 6 months to prevent leakage and deterioration in performance due to self-discharging
